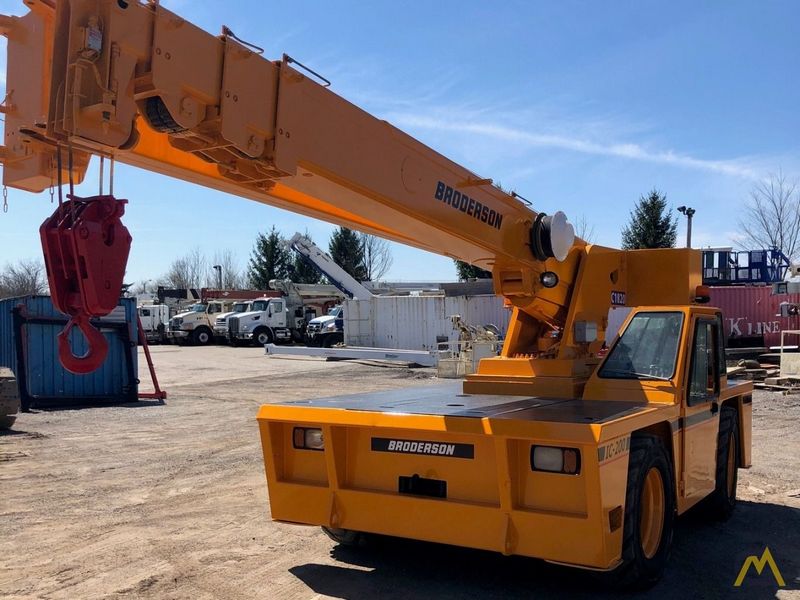

Broderson IC200-3F
Browse All Broderson or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 25.67 ft in (7.83 m) |
| Max Height @ Max Raise Angle - No Jib | 58.67 ft in (17.89 m) |
| Min Operating Radius | 6 ft in (1.83 m) |
| Max Elevating Angle | 73 degrees |
| Max Operating Radius | 66 ft in (20.12 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 30160 lb (13680.35 kg) |
| Swing Speed | 1.8 rpm |
Dimensions
| Transport Length | 22.72 ft in (6925.06 mm) |
| Transport Width | 8 ft in (2438.4 mm) |
| Transport Height | 7.94 ft in (2420.12 mm) |
| Wheelbase | 8.08 in (2462.79 mm) |
| Ground Clearance | 1.14 ft in (347.48 mm) |
| Width W/ Outriggers Extended | 11.92 ft in (3633.22 mm) |
| Carrier/Base Length | 14.92 ft in (4547.62 m) |
| Upper Structure Tail Swing Radius | 6 ft in (1828.8 mm) |
Engine
| Engine Model | GM 4.3L V-6 |
| Gross Power | 110 hp (82.1 kw) |
| Max Torque | 243 lb ft (329.5 Nm) |
| Displacement | 262 cu in (4.3 L) |
Operational
| Operating Weight | 30160 lb (13680.4 kg) |
| Fuel Capacity | 30 gal (113.6 L) |
| Hydraulic System Fluid Capacity | 54 gal (204.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 15x22.5 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20 mph (32.2 km/h) |
| Max Speed - Reverse | 20 mph (32.2 km/h) |
