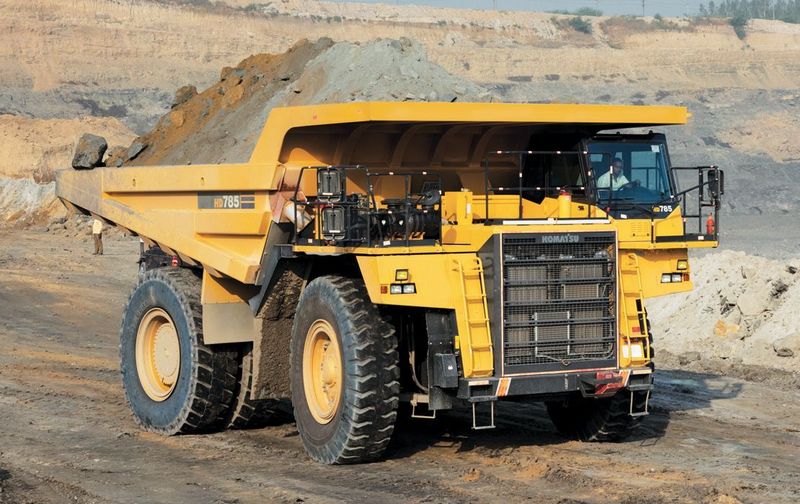

Komatsu HD780
Browse All Komatsu or Rock Truck Models
Contents:
Dimensions
| Overall Length | 32.76 ft in (9985 mm) |
| Overall Width | 18.71 ft in (5700 mm) |
| Overall Height | 15.98 ft in (4870 mm) |
| Wheelbase | 15.59 ft in (4750 mm) |
| Ground Clearance | 2.56 ft in (780 mm) |
| Dump Height | 29.53 ft in (9000 mm) |
| Dump Ground Clearance | 2.96 ft in (900 mm) |
Dump
| Dump Angle | 64 degrees |
Engine
| Engine Make | 2347 |
| Engine Model | VTA-1710 |
| Gross Power | 800 hp (596.6 kw) |
| Net Power | 782 hp (583.2 kw) |
| Displacement | 1709 cu in (28.1 L) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 264.2 gal (1000 L) |
| Cooling System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Capacity | 23.8 gal (90 L) |
| Tire Size | 24.00-49-42PR |
Transmission
| Transmission Type | TORQFLOW planetary gear |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 1 |
| Max Speed | 40.4 mph (65 km/h) |
