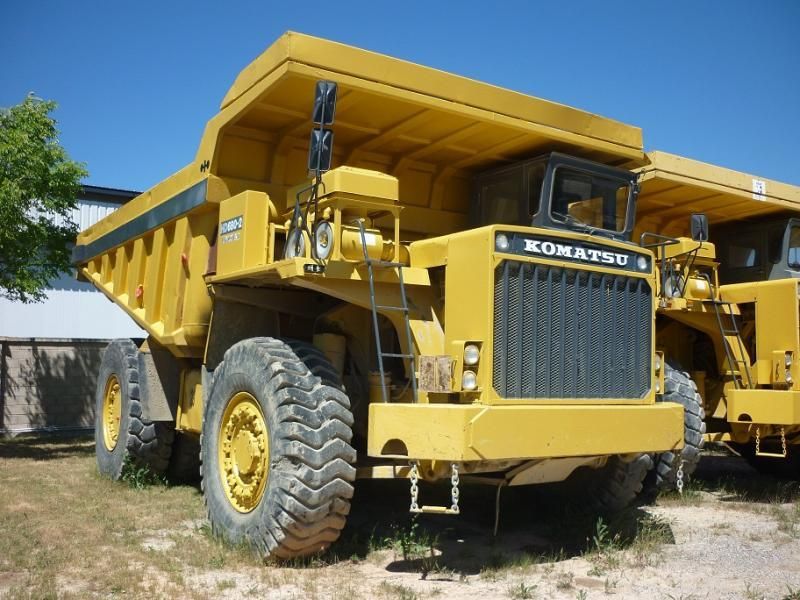

Komatsu HD680
Browse All Komatsu or Rock Truck Models
Contents:
Dimensions
| Overall Length | 32.12 ft in (9790 mm) |
| Overall Width | 15.34 ft in (4675 mm) |
| Overall Height | 14.08 ft in (4290 mm) |
| Wheelbase | 15.59 ft in (4750 mm) |
| Ground Clearance | 1.86 ft in (565 mm) |
| Dump Height | 28.61 ft in (8720 mm) |
| Dump Ground Clearance | 1.78 ft in (540 mm) |
Dump
| Dump Angle | 65 degrees |
| Load Capacity - Heaped | 57.55 yd3 (44 m3) |
| Rated Payload | 149914.33 lb (68000 kg) |
| Load Capacity - Struck | 41.86 yd3 (32 m3) |
Engine
| Engine Make | 2347 |
| Engine Model | HD680 |
| Gross Power | 775 hp (578 kw) |
| Displacement | 1710 cu in (28.1 L) |
Operational
| Tire Size | 24.00-35-42PR |
Transmission
| Transmission Type | Torque converter and TORQFLOW |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 1 |
| Max Speed | 40.4 mph (65 km/h) |
Weights
| Empty Weight | 102515 lb (46500 kg) |
| Loaded Weight | 252550.6 lb (114555 kg) |
| Weight Distribution Front - Loaded | 32 % |
| Weight Distribution Rear - Loaded | 68 % |
