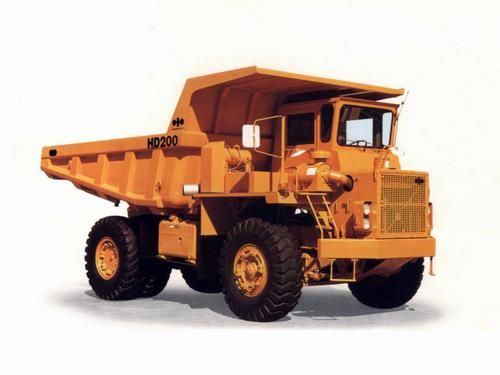

Komatsu HD200-2
Browse All Komatsu or Rock Truck Models
Contents:
Dimensions
| Overall Length | 24.45 ft in (7450 mm) |
| Overall Width | 10.5 ft in (3200 mm) |
| Overall Height | 11.32 ft in (3450 mm) |
| Wheelbase | 12.31 ft in (3750 mm) |
| Ground Clearance | 1.38 ft in (420 mm) |
| Dump Height | 21 ft in (6400 mm) |
| Dump Ground Clearance | 1.51 ft in (460 mm) |
Dump
| Dump Angle | 65 degrees |
| Load Capacity - Struck | 14.65 yd3 (11.2 m3) |
| Load Capacity - Heaped | 19.89 yd3 (15.2 m3) |
| Rated Payload | 40000 lb (18143.7 kg) |
| Raise Time | 8 sec |
Engine
| Engine Make | 2238 |
| Engine Model | Cummins NTC-743-C |
| Gross Power | 280 hp (208.8 kw) |
| Displacement | 743 cu in (12.2 L) |
Operational
| Tire Size | 16.00-25-24PR |
Transmission
| Transmission Type | TCS-41-6C Torque Converter and TORQFLOW |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 1 |
| Max Speed | 31.1 mph (50 km/h) |
Weights
| Empty Weight | 40785.6 lb (18500 kg) |
| Loaded Weight | 84999.3 lb (38555 kg) |
| Weight Distribution Front - Empty | 47.6 % |
| Weight Distribution Rear - Empty | 52.4 % |
| Weight Distribution Front - Loaded | 30.1 % |
| Weight Distribution Rear - Loaded | 69.9 % |
