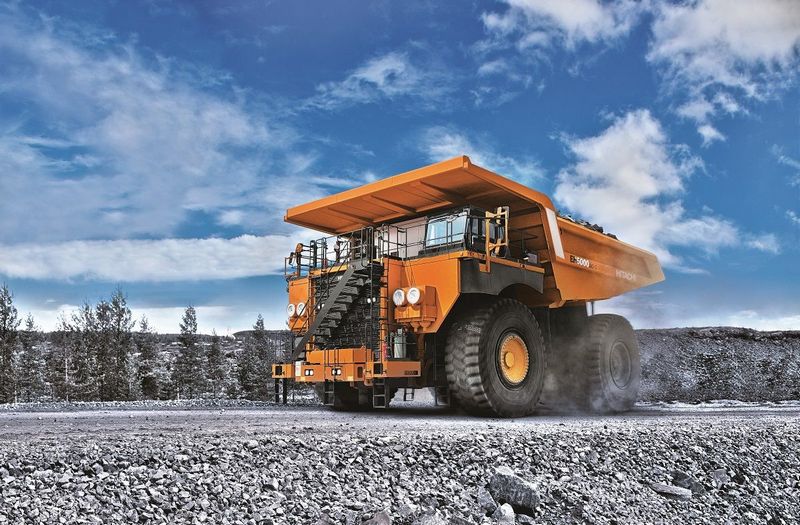

Hitachi EH 5000 AC - 3 (MTU)
Browse All Hitachi or Rock Truck Models
Contents:
Dimensions
| Overall Length | 50.83 ft in (15490 mm) |
| Hoist - Type | Twin, 3-stage |
| Max. Height | 296.07 in (7520 mm) |
| Power Down | Yes |
| Width Over Tires | 28.25 ft in (8610 mm) |
Body
| Payload | 652568.3 lb (296000 kg) |
Engine
| Piston Displacement | 3966.6 cu in (65 L) |
| Engine Model | 16V 4000 C20L |
| Gross Power | 2849.7 hp (2125 kw) |
| Net Power | 2641.9 hp (1970 kw) |
| Power Measured @ | 1900 rpm |
Capacities
| Fuel Tank - Diesel | 789.9 gal (2990 L) |
| Hydraulic System | 251 gal (950 L) |
| Body-Struck | 193.6 yd3 (148 m3) |
| Body-Heaped 2:1 | 264.3 yd3 (202 m3) |
Operational
| Max Operation Weight - Total | 110231.2 lb (50000 kg) |
Tires
| Tire Size Engine | 53 / 80 R63 |
Brakes
| Service Brake | Hydraulic |
