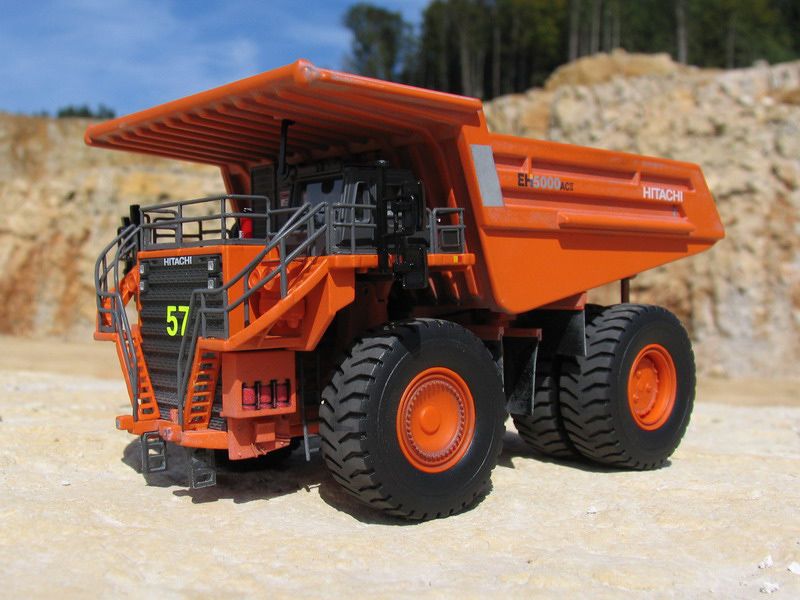

Hitachi EH 5000 AC - 2 (C 23)
Browse All Hitachi or Rock Truck Models
Contents:
Dimensions
| Overall Length | 49.94 ft in (15220 mm) |
| Hoist - Type | Twin, 3-stage |
| Max. Height | 314.97 in (8000 mm) |
| Power Down | Yes |
| Width Over Tires | 27.76 ft in (8460 mm) |
Body
| Payload | 632726.7 lb (287000 kg) |
Engine
| Piston Displacement | 4656.2 cu in (76.3 L) |
| Engine Model | MTU Detroit Diesel 16V 4000 |
| Gross Power | 2700.9 hp (2014 kw) |
| Net Power | 3003.9 hp (2240 kw) |
| Power Measured @ | 1800 rpm |
Capacities
| Fuel Tank - Diesel | 1250.1 gal (4732 L) |
| Hydraulic System | 255 gal (965 L) |
| Body-Struck | 204.1 yd3 (156 m3) |
| Body-Heaped 2:1 | 264.3 yd3 (202 m3) |
Operational
| Max Operation Weight - Total | 110231.2 lb (50000 kg) |
Tires
| Tire Size Engine | 53 / 80 R63 |
Hydraulic System
| Pump Flow Capacity | 264.8 gal/min (1002 L/min) |
Brakes
| Parking Brake | Dry Multi Disc |
| Service Brake | Hydraulic |
