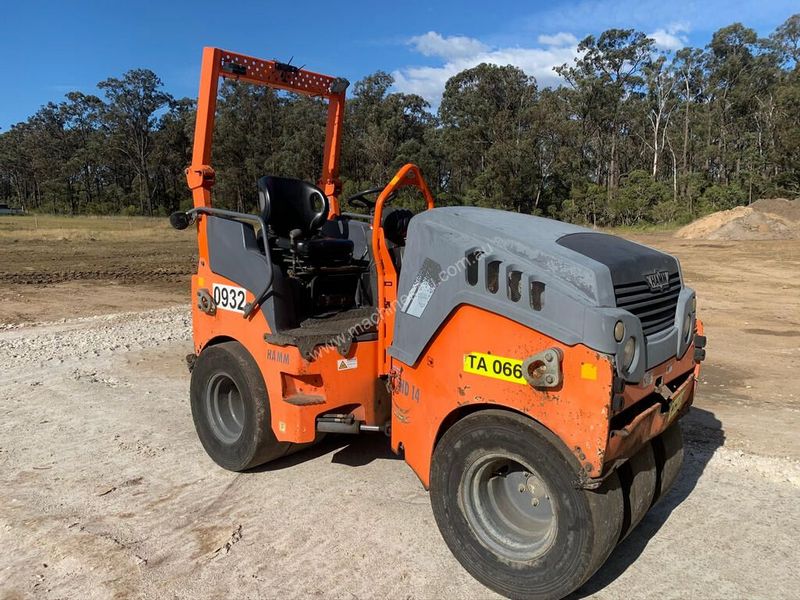

Hamm HD14 TT
Browse All Hamm or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 114.02 in (2896 mm) |
| Overall Width | 4.26 ft in (1296 mm) |
| Height To Top Of Rops | 8.5 ft in (2590 mm) |
| Wheelbase | 6.4 ft in (1950 mm) |
| Ground Clearance | 1.01 ft in (305 mm) |
| Maximum Width | 4186.36 ft in (1276 m) |
| Turning Radius - Inside | 8.54 ft in (2602 mm) |
Tyres
| Size Of Tyres, Rear | 80-16 |
| Width Over Tyres, Rear | 50.3 in (1276 mm) |
| Size Of Tyres, Front | 10.5 |
| Width Over Tyres, Front | 44.4 in (1127 mm) |
Engine
| Emissions Certification | EU Stage IIIA |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | V2203 |
| Gross Power | 46.4 hp (34.6 kw) |
| Net Power | 46.4 hp (34.6 kw) |
| Power Measured @ | 2700 rpm |
Operational
| Operating Weight Rops | 7650.1 lb (3470 kg) |
| Operating Weight | 9524 lb (4320 kg) |
| Fuel Capacity | 19.3 gal (73 L) |
| Water Spray Tank Fluid Capacity | 75.3 gal (285 L) |
| Max Speed | 6.3 mph (10 km/h) |
Tires
| Number Of Tires - Front | 3 |
| Number Of Tires - Rear | 4 |
