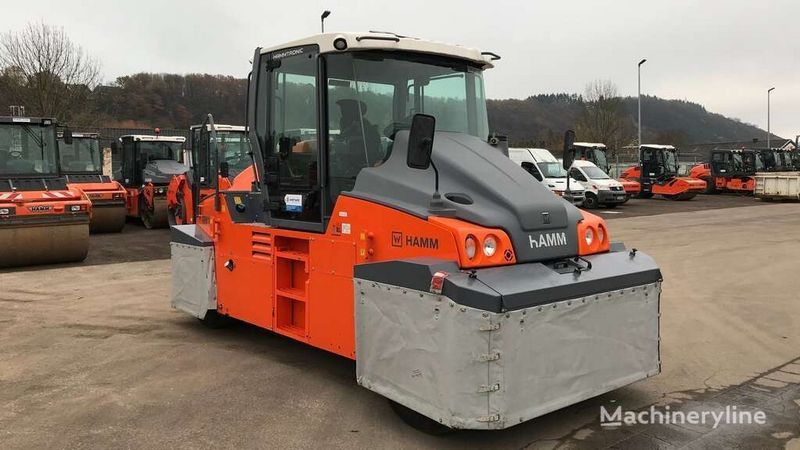

Hamm GRW280i
Browse All Hamm or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 114.02 in (2896 mm) |
| Overall Width | 4.26 ft in (1296 mm) |
| Height To Top Of Rops | 8.5 ft in (2590 mm) |
| Wheelbase | 6.4 ft in (1950 mm) |
| Ground Clearance | 1.01 ft in (305 mm) |
| Maximum Width | 4186.36 ft in (1276 m) |
| Turning Radius - Inside | 8.54 ft in (2602 mm) |
Tyres
| Size Of Tyres, Rear | 11.00-R20 |
| Width Over Tyres, Rear | 72.1 in (1830 mm) |
| Size Of Tyres, Front | 11.00-R20 |
| Width Over Tyres, Front | 72.1 in (1830 mm) |
Engine
| Emissions Certification | EU Stage IV / EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 3.6 L4 |
| Gross Power | 114 hp (85 kw) |
| Net Power | 114 hp (85 kw) |
| Power Measured @ | 2000 rpm |
Operational
| Def Tank Capacity | 5.3 gal (20 L) |
| Operating Weight Cabin | 23148.6 lb (10500 kg) |
| Operating Weight Rops | 22641.5 lb (10270 kg) |
| Fuel Capacity | 62.1 gal (235 L) |
| Operating Weight | 61641.3 lb (27960 kg) |
| Water Spray Tank Fluid Capacity | 171.8 gal (650 L) |
| Max Speed | 11.9 mph (19 km/h) |
Tires
| Number Of Tires - Front | 4 |
| Number Of Tires - Rear | 4 |
