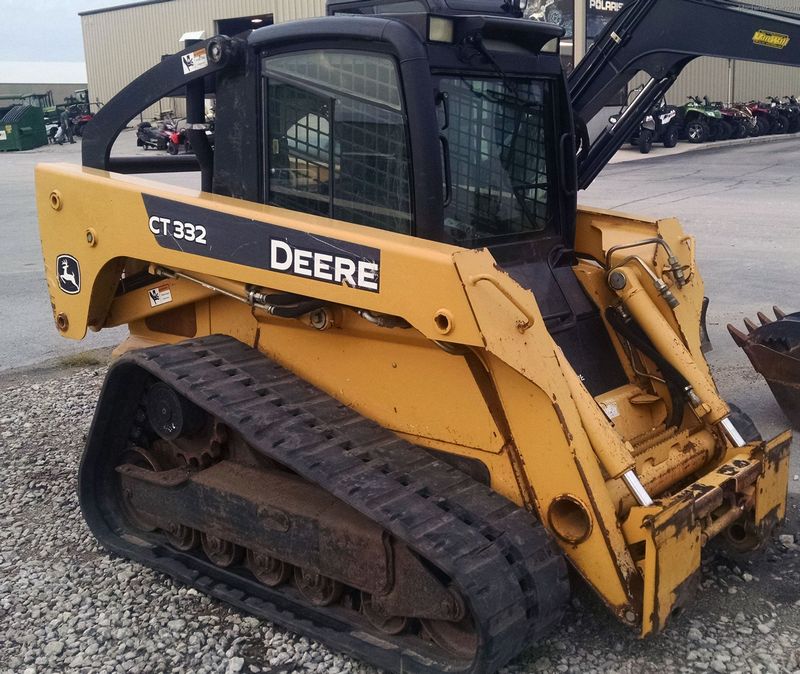

John Deere CT332
Browse All John Deere or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 6.72 ft in (2047 mm) |
| Height To Top Of Cab | 6.91 ft in (2106 mm) |
| Ground Clearance | 11 in (279 mm) |
| Clearance At Max Lift And Dump | 8.51 ft in (2591 mm) |
| Reach At Max Lift And Dump | 2.76 ft in (841 mm) |
| Length With Bucket | 11.55 ft in (3518 mm) |
| Length With Out Bucket | 9.63 ft in (2934 mm) |
| Turning Radius From Center - Inc Bucket | 83.7 in (2126 mm) |
Undercarriage
| Track Gauge | 5.24 ft in (1597 mm) |
| Number Of Track Rollers Per Side | 5 |
| Width Of Track | 17.72 in (450 mm) |
| Ground Pressure | 4.3 psi (29.65 kPa) |
Engine
| Number Of Cylinders | 5 |
| Engine Make | 2240 |
| Engine Model | 5030Tw |
| Gross Power | 82 hp (61.5 kw) |
| Net Power | 76 hp (56.7 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 186 cu in (3 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 10825 lb (4910 kg) |
| Fuel Capacity | 28 gal (106 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed - Low Range | 5.3 mph (8.5 km/h) |
| Max Speed - High Range | 7.9 mph (12.6 km/h) |
Loader
| Breakout Force | 11600 lb (5261.7 kg) |
| Operating Load | 3201.2 lb (1452 kg) |
| Tipping Angle | 9200 degrees |
Hydraulic
| Pump Flow | 24 gal/min (90.9 L/min) |
| Relief Valve Pressure | 3100 psi (21373.8 kPa) |
