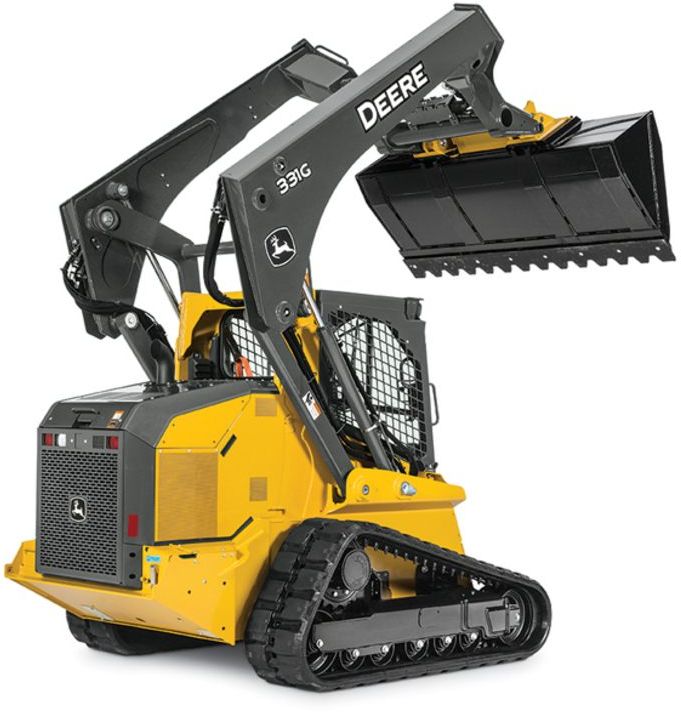

John Deere 331G
Browse All John Deere or Multi Terrain Loader Models
Contents:
Dimensions
| Height To Top Of Cab | 7.22 ft in (2200 mm) |
| Ground Clearance | 9.45 in (240 mm) |
| Track Gauge | 5.25 ft in (1600 mm) |
| Length - No Bucket | 122.05 in (3100 mm) |
| Length - With Bucket | 146.07 in (3710 mm) |
| Rear Departure Angle | 31 |
| Rollback - Ground Level | 35 - |
| Dump Angle | 48 |
| Width - No Bucket | 78.75 in (2000 mm) |
| Dump Height - Maximum | 105.91 in (2690 mm) |
| Height To Hinge Pin | 131.89 in (3350 mm) |
Driveline
| Engine Model | 4TNV94FHT |
| Displacement | 189.2 cu in (3.1 L) |
| Engine Manufacturer | Yanmar |
| Emission Rating | Tier 4 |
| Rated Speed | 2500 rpm |
| Engine Output - Net | 88.6 hp (66 kw) |
| Engine Output - Gross | 91.2 hp (68 kw) |
| Track Shoe Width | 15.8 in (400 mm) |
| Aspiration | Turbo. intercooled |
| Torque | 281.8 lb ft (382 Nm) |
Capacities
| Fuel Tank - Diesel | 30.2 gal (114 L) |
Description
| Lift Geometry | Vertical |
Performance
| Ground Bearing Pressure | 5.6 psi (38.1 kPa) |
| Pump Flow | 21.2 gal/min (80 L/min) |
| Speed - Maximum | 7.9 mph (12.6 km/h) |
| Breakout - Lift | 6991.6 lb (31.1 kN) |
| Breakout - Bucket | 9329.6 lb (41.5 kN) |
| Hydraulic Power | 42.1 hp (31.4 kw) |
| System Pressure | 3450 psi (23786.9 kPa) |
| Tipping Load | 8864.8 lb (4021 kg) |
| Rated Operating Capacity | 3102 lb (1407 kg) |
| Hydraulic Power - Option, Kw (Hp) | 72.6 hp (54.2 kw) |
| Pump Flow - Option | 36.5 gal/min (138 L/min) |
Weights
| Operating Weight | 11911.6 lb (5403 kg) |
