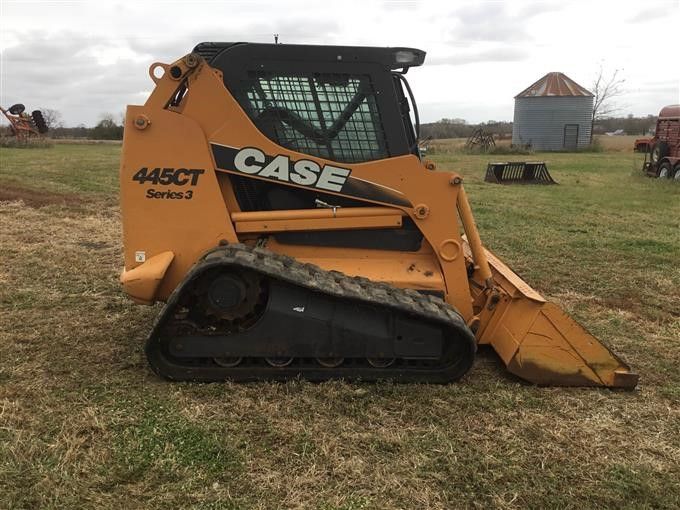

Case 445CT Series 3
Browse All Case or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 6.93 ft in (2112 mm) |
| Height To Top Of Cab | 6.93 ft in (2110 mm) |
| Ground Clearance | 11.15 in (283 mm) |
| Clearance At Max Lift And Dump | 7.32 ft in (2230 mm) |
| Reach At Max Lift And Dump | 3.38 ft in (1030 mm) |
| Turning Radius From Center - Inc Bucket | 92.13 in (2340 mm) |
| Turning Radius From Center - Machine Rear | 55.12 in (1400 mm) |
| Length With Bucket | 11.29 ft in (3440 mm) |
| Length With Out Bucket | 8.7 ft in (2650 mm) |
Undercarriage
| Length Of Track On Ground | 1638 ft in (499262.4 mm) |
| Ground Contact Area | 2293 in2 (1.48 m2) |
| Number Of Track Rollers Per Side | 4 |
| Width Of Track | 17.72 in (450 mm) |
| Ground Pressure | 4.3 psi (29.65 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | 432T/M3 |
| Gross Power | 82 hp (61.2 kw) |
| Net Power | 77 hp (57.5 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 229 lb ft (310.5 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 195 cu in (3.2 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 10200 lb (4626.7 kg) |
| Cooling System Fluid Capacity | 3.1 gal (11.4 L) |
| Fuel Capacity | 17.3 gal (65.5 L) |
| Engine Oil Capacity | 2.3 gal (8.5 L) |
| Hydraulic System Fluid Capacity | 11 gal (41.7 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Max Speed - Low Range | 5.1 mph (8.3 km/h) |
| Max Speed - High Range | 8 mph (12.9 km/h) |
Loader
| Operating Load | 3300 lb (1496.9 kg) |
| Tipping Angle | 6600 degrees |
| Bucket Capacity | 0.8 yd3 (0.6 m3) |
Hydraulic
| Pump Type | Gear |
| Pump Flow | 23.9 gal/min (90.1 L/min) |
