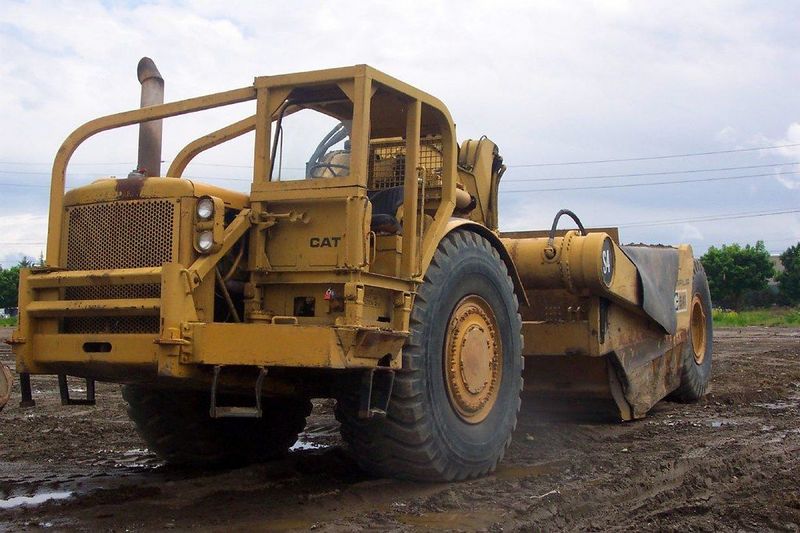

Caterpillar 641B
Browse All Caterpillar or Motor Scraper Models
Contents:
Dimensions
| Overall Length | 49.08 ft in (14959.59 mm) |
| Overall Width | 13.25 ft in (4038.6 mm) |
| Overall Height | 14.25 ft in (4343.4 mm) |
| Wheelbase | 31 ft in (9448.8 mm) |
Tractor Engine
| Model | D346 |
| Net Power | 550 hp (410.2 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 1190 cu in (19.6 L) |
Operational
| Fuel Capacity | 280 gal (1060 L) |
| Tire Size | 37.5x39, 36PR |
Transmission
| Max Speed Forward | 32 mph (51.5 km/h) |
Weights
| Total Operating - Empty | 119000 lb (53977.5 kg) |
Bowl
| Heaped Capacity | 28 yd3 (21.5 m3) |
| Struck Capacity | 38 yd3 (29.1 m3) |
| Max Depth Of Cut | 16 in (406.4 mm) |
| Width Of Cut | 11.4 ft in (3453.4 mm) |
