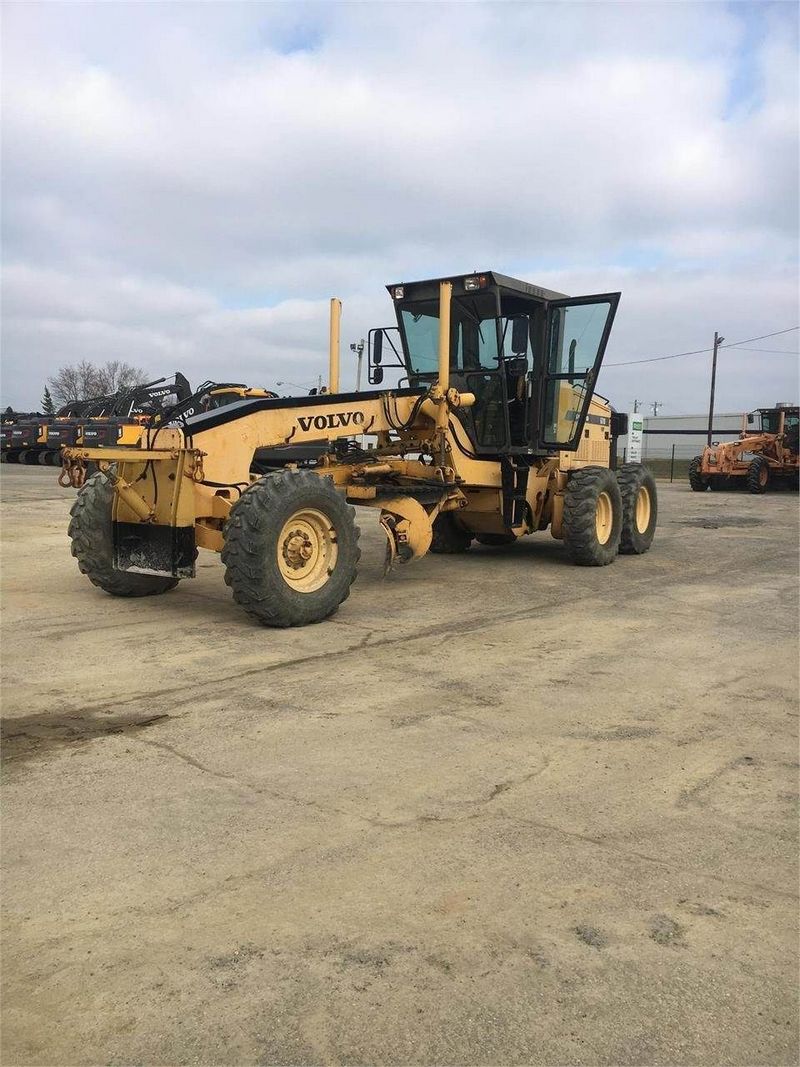

Volvo G710 VHP
Browse All Volvo or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.75 ft in (8458 mm) |
| Width Over Tires | 8.17 ft in (2489 mm) |
| Wheelbase | 20 ft in (6096 mm) |
| Blade Base | 8.59 ft in (2616 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6B5.9 |
| Net Power Gear 1-2 | 140 hp (104.4 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1600 rpm |
| Max Power | 140 hp (104.4 kw) |
| Net Torque Gears 1-2 | 440 lb ft (596.6 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Std Operation Weight - Front Axle | 9400.6 lb (4264 kg) |
| Std Operation Weight - Rear Axle | 21230.6 lb (9630 kg) |
| Std Operation Weight - Total | 30631.1 lb (13894 kg) |
Steering
| Articulation Angle | 22 degrees |
| Turning Radius | 25.5 ft in (7.8 m) |
Transmission
| Transmission Type | Volvo 8400 |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 24.8 mph (39.8 km/h) |
| Max Speed - Reverse | 17.8 mph (28.5 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 16 degrees |
| Ground Clearance | 2 ft in (597 mm) |
Moldboard
| Moldboard Width | 12.1 ft in (3658 mm) |
| Moldboard Height | 25 in (635 mm) |
| Moldboard Thickness | 0.9 in (22.3 mm) |
| Max Depth Of Cut | 32.6 in (826 mm) |
| Side Shift Left | 30.5 in (774.7 mm) |
| Side Shift Right | 30.5 in (774.7 mm) |
| Blade Pull At Max Weight | 19109 lb (8667.7 kg) |
| Blade Down Pressure | 16494 lb (7481.6 kg) |
Hydraulic System
| Pump Type | load sensing hydraulic |
| Pump Flow | 50.5 gal/min (191 L/min) |
| Relief Valve Pressure | 2500 psi (17236.9 kPa) |
Circle
| Diameter | 66.3 in (1683 mm) |
| Rotation | 360 degrees |
