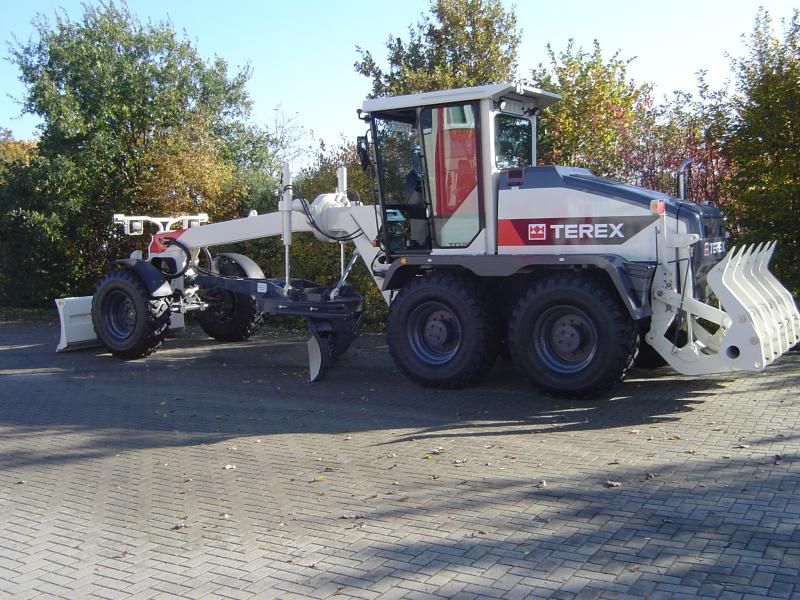

Terex TG190TA-3
Browse All Terex or Motor Grader Models
Contents:
Dimensions
| Overall Length | 33.67 ft in (10266 mm) |
| Width Over Tires | 8.08 ft in (2490 mm) |
| Wheelbase | 20.08 ft in (6136 mm) |
| Rear Ground Clearance | 18.61 ft in (474 mm) |
| Tandem Axle Wheelbase | 5.08 ft in (510 mm) |
| Front Ground Clearance | 18.61 ft in (474 mm) |
| Height To Top Of Isomount Cab | 10.83 ft in (3300 mm) |
Engine
| Engine Make | 2347 |
| Net Power Gear 5-6 | 176 hp (131.3 kw) |
| Max Power | 176 hp (131.3 kw) |
| Displacement | 366 cu in (6 L) |
| Aspiration | Turbo Charged, Water cooled |
Operational
| Std Operation Weight - Front Axle | 11023 lb (5000 kg) |
| Std Operation Weight - Rear Axle | 30203 lb (13700 kg) |
| Hydraulic System Fluid Capacity | 44.9 gal (170 L) |
| Std Operation Weight - Total | 41266 lb (18700 kg) |
| Fuel Capacity | 126.8 gal (480 L) |
| Cooling System Fluid Capacity | 11.9 gal (42 L) |
| Transmission Fluid Capacity | 9 gal (34 L) |
| Rear Diff/Final Drive Fluid Capacity | 4 gal (15 L) |
| Circle Gearbox Fluid Capacity | 1.6 gal (6 L) |
| Tandem Case Fluid Capacity (Each) | 5.5 gal (21 L) |
| Tire Size | 14.00 -24TG |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Auto Power Shift Tansmission With torque Converter |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 3 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 12 mph (19.4 km/h) |
Front Axle
| Wheel Lean | 17 degrees |
| Oscillation - Total | 15 degrees |
| Ground Clearance | 23.3 ft in (546 mm) |
Moldboard
| Moldboard Width | 12 ft in (3660 mm) |
| Moldboard Height | 24.8 in (630 mm) |
| Moldboard Thickness | 0.8 in (20 mm) |
| Blade Pull At Max Weight | 31264 lb (14181.2 kg) |
Hydraulic System
| Pump Type | Axial Piston Pump |
| Pump Flow | 26.1 gal/min (99 L/min) |
| Relief Valve Pressure | 2669 psi (127.8 kPa) |
Circle
| Diameter | 5 in (1510 mm) |
| Max Lift Above Ground | 4.3 in (110 mm) |
