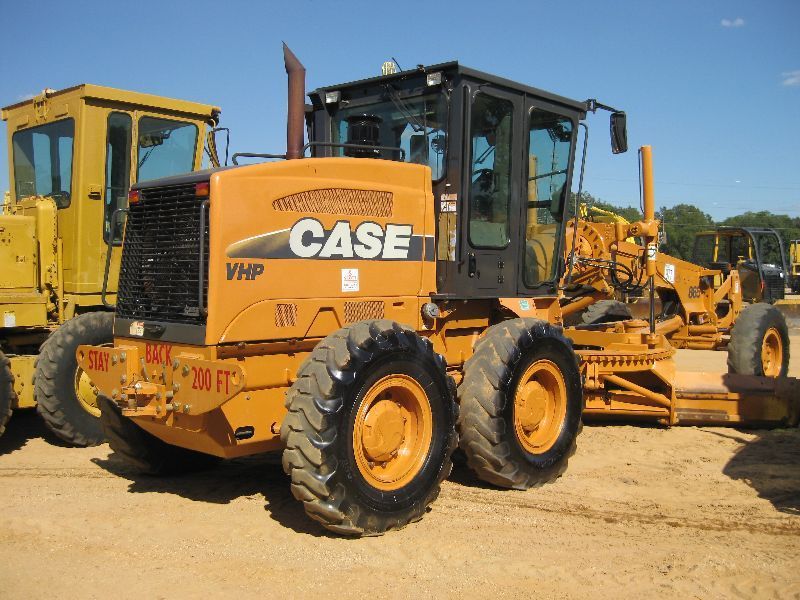

Case 865 VHP
Browse All Case or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28 ft in (8534 mm) |
| Width Over Tires | 8.25 ft in (2510 mm) |
| Wheelbase | 20.43 ft in (6219 mm) |
| Rear Ground Clearance | 1.25 ft in (380 mm) |
| Tandem Axle Wheelbase | 5.17 ft in (1594 mm) |
| Front Ground Clearance | 2.04 ft in (622 mm) |
| Blade Base | 8.42 ft in (2562 mm) |
| Height To Top Of Isomount Cab | 10.92 ft in (3340 mm) |
Engine
| Fuel | Diesel |
| Fuel Injection | Common Rail |
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB-6.7, Tier III certified Electronic control |
| Engine Type | 4-stroke, turbocharged and air-to-air cooled |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1500 rpm |
| Max Power | 205 hp (152.9 kw) |
| Net Power Gears 7-8 | 205 hp (152.9 kw) |
| Net Torque Gears 7-8 | 650 lb ft (881 Nm) |
| Displacement | 411 cu in (6.7 L) |
| Bore | 4.1 in (104 mm) |
| Stroke | 5.2 in (132 mm) |
| Aspiration | turbocharged, air to air cooled |
Operational
| Std Operation Weight - Front Axle | 9464 lb (4293 kg) |
| Std Operation Weight - Rear Axle | 22822 lb (10342 kg) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Std Operation Weight - Total | 32265 lb (14635 kg) |
| Oil System Fluid Capacity | 4.7 gal (17.8 L) |
| Fuel Capacity | 90 gal (340.7 L) |
| Cooling System Fluid Capacity | 10.5 gal (40 L) |
| Transmission Fluid Capacity | 5 gal (23 L) |
| Rear Diff/Final Drive Fluid Capacity | 3.2 gal (12 L) |
| Circle Gearbox Fluid Capacity | 0.8 gal (2.8 L) |
| Tandem Case Fluid Capacity (Each) | 7.6 gal (28.7 L) |
| Tire Size | 14.0 x 24 12PR TL G2 Firestone |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 23.8 ft in (7.3 m) |
Transmission
| Transmission Type | direct drive contershaft powershift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 26.6 mph (42.9 km/h) |
| Max Speed - Reverse | 17.7 mph (28.5 km/h) |
Front Axle
| Wheel Lean | 17.5 degrees |
| Oscillation - Total | 19 degrees |
Moldboard
| Moldboard Length | 13 ft in (3962 mm) |
| Moldboard Height | 23.6 in (600 mm) |
| Moldboard Thickness | 0.9 in (22.2 mm) |
| Max Depth Of Cut | 28 in (711.2 mm) |
| Side Shift Left | 21 in (533 mm) |
| Side Shift Right | 27 in (686 mm) |
Hydraulic System
| Pump Type | Closed center load sensing piston pump |
| Pump Flow | 37.9 gal/min (143.5 L/min) |
| Relief Valve Pressure | 6092 psi (- -) |
Circle
| Blade Pitch Operation Adjustment Fwd | 42 degrees |
| Blade Pitch Operation Adjustment Rear | 87 degrees |
| Diameter | 69 in (1752 mm) |
| Rotation | 360 degrees |
| Max Lift Above Ground | 17.5 in (444.5 mm) |
