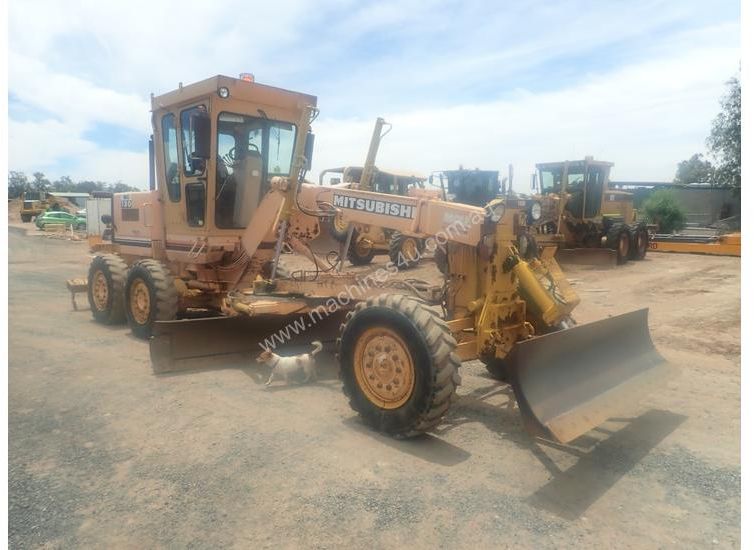

Mitsubishi MG130
Browse All Mitsubishi or Motor Grader Models
Contents:
Dimensions
| Overall Length | 22.68 ft in (6910 mm) |
| Width Over Tires | 7.03 ft in (2140 mm) |
| Wheelbase | 16.08 ft in (4900 mm) |
| Height To Top Of Isomount Cab | 8.9 ft in (2710 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | C S4K-E2T |
| Power Measured @ | 2300 rpm |
| Net Power Gear 5-6 | 95 hp (70.9 kw) |
| Max Power | 95 hp (70.9 kw) |
| Displacement | 259.3 cu in (4.3 L) |
Operational
| Std Operation Weight - Total | 19081.1 lb (8655 kg) |
| Tire Size | 10.00-20-10PR |
| Operating Voltage | 24 V |
Steering
| Turning Radius | 19.1 ft in (5.8 m) |
Transmission
| Transmission Type | power shift, planetary gear, hydraulically actuated |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 20.3 mph (32.6 km/h) |
| Max Speed - Reverse | 20.7 mph (33.2 km/h) |
Moldboard
| Moldboard Width | 10.2 ft in (3100 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.7 in (16 mm) |
