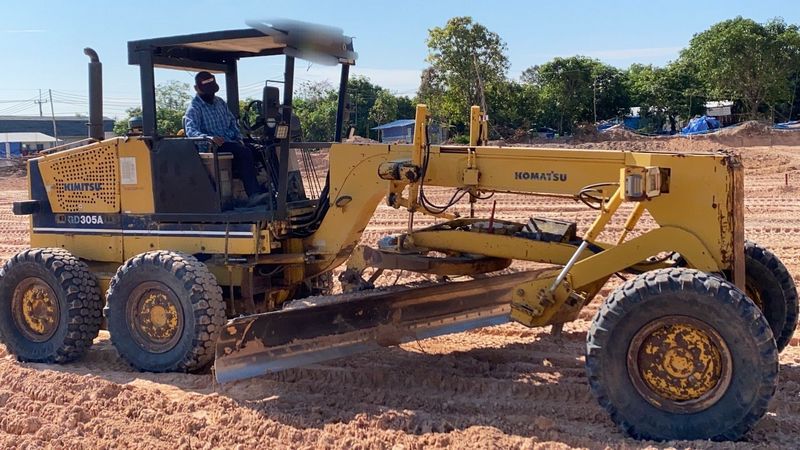

Komatsu GD305A-3
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 22.76 ft in (6935 mm) |
| Width Over Tires | 6.89 ft in (2100 mm) |
| Wheelbase | 16.41 ft in (5000 mm) |
| Tandem Axle Wheelbase | 4.38 ft in (1335 mm) |
| Blade Base | 6.94 ft in (2115 mm) |
| Height To Top Of Isomount Cab | 8.01 ft in (2440 mm) |
Engine
| Number Of Cylinders | 4 |
| Net Power Gear 4-6 | 100 hp (74.6 kw) |
| Engine Make | 2238 |
| Engine Model | S4D102E |
| Power Measured @ | 2500 rpm |
| Max Power | 100 hp (74.6 kw) |
| Displacement | 239.3 cu in (4 L) |
Operational
| Std Operation Weight - Total | 17592.9 lb (7980 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Tire Size | front 9.00-20-8PR rear 10.00-20-10PR |
Steering
| Articulation Angle | 27 degrees |
| Turning Radius | 18.7 ft in (5.7 m) |
Transmission
| Number Of Gears - Forward | 4 |
| Number Of Gears - Reverse | 1 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 15.3 mph (24.6 km/h) |
Moldboard
| Moldboard Width | 10.4 ft in (3150 mm) |
| Moldboard Height | 20.9 in (530 mm) |
