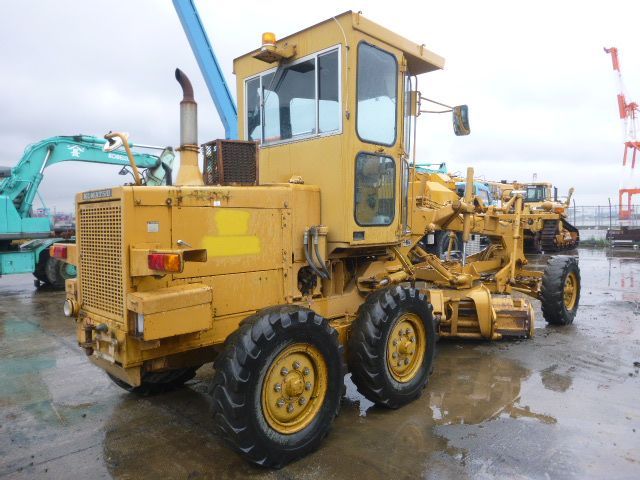

Komatsu GD405A-1
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 23.05 ft in (7025 mm) |
| Width Over Tires | 7.11 ft in (2165 mm) |
| Wheelbase | 16.08 ft in (4900 mm) |
| Rear Ground Clearance | 0.99 ft in (300 mm) |
| Tandem Axle Wheelbase | 4.29 ft in (1305 mm) |
| Front Ground Clearance | 1.43 ft in (435 mm) |
| Blade Base | 6.89 ft in (2100 mm) |
| Height To Top Of Isomount Cab | 10.88 ft in (3315 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | 6D105 |
| Net Power Gear 5-6 | 110 hp (82.1 kw) |
| Max Power | 110 hp (82.1 kw) |
| Net Torque Gears 5-6 | 282 lb ft (382.4 Nm) |
| Displacement | 396 cu in (6.5 L) |
Operational
| Std Operation Weight - Front Axle | 5621.8 lb (2550 kg) |
| Std Operation Weight - Rear Axle | 13955.3 lb (6330 kg) |
| Std Operation Weight - Total | 19577.1 lb (8880 kg) |
| Tire Size | front 9.00-20-10PR, rear 11.00-20-10PR |
Steering
| Articulation Angle | 27 degrees |
| Turning Radius | 18.4 ft in (5.6 m) |
Transmission
| Transmission Type | hydroshift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 26.1 mph (42 km/h) |
| Max Speed - Reverse | 28 mph (45 km/h) |
Front Axle
| Wheel Lean | 22 degrees |
| Oscillation - Total | 26 degrees |
| Ground Clearance | 1.5 ft in (435 mm) |
Moldboard
| Moldboard Width | 10.2 ft in (3100 mm) |
| Moldboard Height | 24.7 in (625 mm) |
| Moldboard Thickness | 0.8 in (19 mm) |
| Max Depth Of Cut | 17.4 in (440 mm) |
Circle
| Max Reach Outside Tires - Left | 54 in (1370 mm) |
| Max Reach Outside Tires - Right | 56 in (1420 mm) |
| Max Lift Above Ground | 14.2 in (360 mm) |
