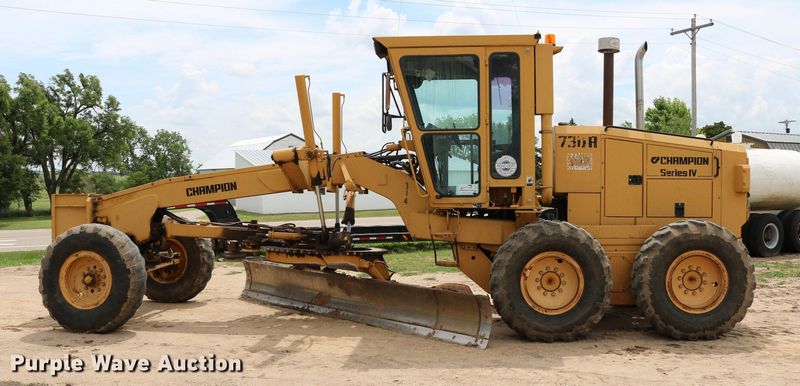

Champion 730A
Browse All Champion or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.84 ft in (8484 mm) |
| Wheelbase | 20 ft in (6096 mm) |
| Blade Base | 8.51 ft in (2591 mm) |
| Overall Height With Cab | 11.17 ft in (3404 mm) |
| Overall Width | 8.34 ft in (2540 mm) |
| Tread Width | 82.01 in (2083 mm) |
Engine
| Torque | 540 lb ft (732.2 Nm) |
| Number Of Cylinders | 6 |
| Gross Horsepower | 207 hp (154.4 kw) |
| Engine Make | Cummins |
| Engine Model | 6CT8.3 |
| Power Measured @ | 2100 rpm |
| Torque Measured @ | 1500 rpm |
| Max Power | 193 hp (144 kw) |
| Displacement | 504.7 cu in (8.3 L) |
| Bore | 4.5 in (114 mm) |
| Stroke | 5.4 in (135 mm) |
| Aspiration | Turbocharged |
Operational
| Std Operation Weight - Front Axle | 9960 lb (4517.8 kg) |
| Std Operation Weight - Rear Axle | 23260 lb (10550.6 kg) |
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Std Operation Weight - Total | 33220 lb (15068.4 kg) |
| Oil System Fluid Capacity | 10.1 gal (37.9 L) |
| Fuel Capacity | 100 gal (378.5 L) |
| Cooling System Fluid Capacity | 11.3 gal (42.5 L) |
| Transmission Fluid Capacity | 10.3 gal (38.8 L) |
| Rear Diff/Final Drive Fluid Capacity | 6.1 gal (23 L) |
| Tandem Case Fluid Capacity (Each) | 26.5 gal (100 L) |
| Tire Size | 14.00 * 24, G-2 |
Steering
| Articulation Angle | 22 degrees |
| Turning Radius | 25.6 ft in (7.9 m) |
Transmission
| Transmission Type | Powershift |
| Max Speed - Forward | 26.3 mph (42.3 km/h) |
| Max Speed - Reverse | 18.9 mph (30.4 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 16 degrees |
| Ground Clearance | 2.1 ft in (610 mm) |
Moldboard
| Max Reach Outside - Left | 9.8 ft in (2973 mm) |
| Max Reach Outside - Right | 9.5 ft in (2870 mm) |
| Moldboard Width | 12.1 ft in (3658 mm) |
| Moldboard Height | 25 in (635 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Side Shift Left | 26.5 in (673 mm) |
| Side Shift Right | 26.5 in (673 mm) |
Hydraulic System
| Pump Flow | 48.2 gal/min (182.5 L/min) |
| Relief Valve Pressure | 2500 psi (17236.9 kPa) |
Circle
| Blade Ground Clearance | 1.5 ft in (432 mm) |
| Blade Cutting Depth | 2.5 ft in (762 mm) |
| Diameter | 66.3 in (1683 mm) |
| Rotation | 360 degrees |
| Shift Left | 26 in (660 mm) |
| Shift Right | 24.1 in (610 mm) |
| Blade Tip Angle - Front | 44 degrees |
| Blade Tip Angle - Rear | 6.5 degrees |
