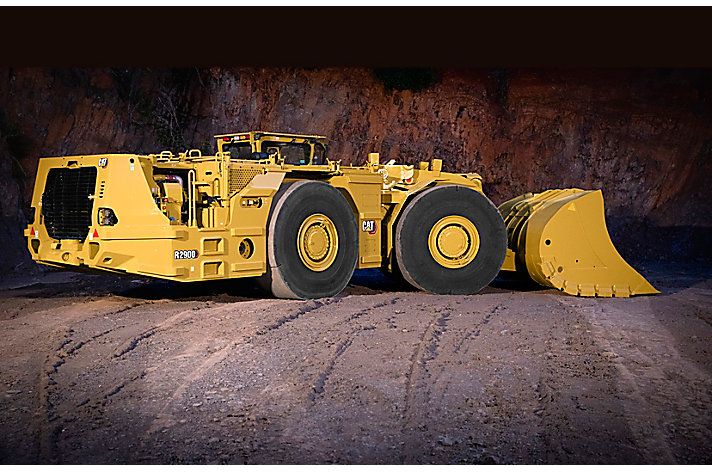

Caterpillar R2900 SUPA 20
Browse All Caterpillar or Motor Grader Models
Contents:
Dimensions
| Overall Length | 36 ft in (10970 mm) |
| Width Over Tires | 9.52 ft in (2900 mm) |
Engine
| Net Power Gear 4-6 | 361 hp (269.2 kw) |
| Engine Make | 2236 |
| Engine Model | 3406E EUI ATAAC |
| Max Power | 361 hp (269.2 kw) |
Operational
| Std Operation Weight - Total | 117065.5 lb (53100 kg) |
| Fuel Capacity | 237.8 gal (900 L) |
| Tire Size | 29.5R29 VSMS** |
Steering
| Articulation Angle | 42.5 degrees |
| Turning Radius | 24409.5 ft in (7440 m) |
Transmission
| Number Of Gears - Forward | 4 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 16.6 mph (26.7 km/h) |
| Max Speed - Reverse | 20.2 mph (32.5 km/h) |
Front Axle
| Oscillation - Total | 8 degrees |
| Ground Clearance | 1.7 ft in (500 mm) |
