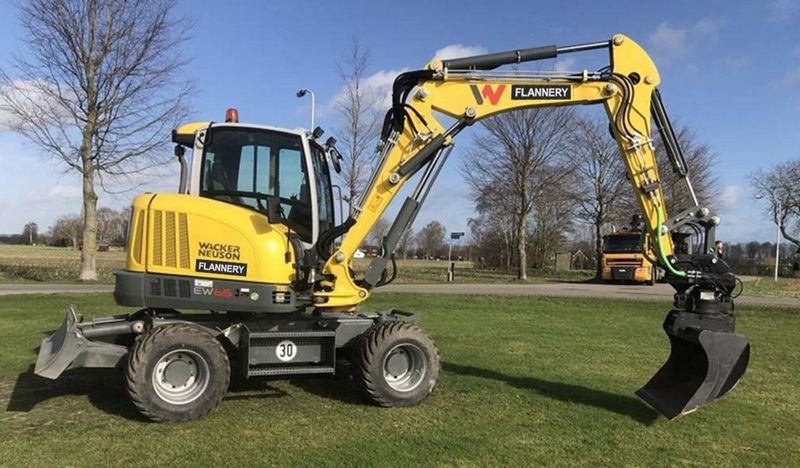

Wacker Neuson EW65
Browse All Wacker Neuson or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Digging Depth | 12.57 ft in (3830.33 mm) |
| Max Breakout Force | 11398 lb (50.71 kN) |
| Max Dumping Height | 14.4 ft in (4389.12 mm) |
Dimensions
| Overall Width | 82.1 in (2085.34 mm) |
| Ground Clearance | 0.78 ft in (236.22 mm) |
| Height To Top Of Cab | 9.11 ft in (2775 mm) |
| Track Width | 0.99 ft in (0.3 m) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins diesel engine |
| Engine Model | 404F-22 |
| Gross Power | 58.6 hp (43.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 135.2 cu in (2.3 L) |
Operational
| Operating Weight | 17643 lb (8002.8 kg) |
| Fuel Capacity | 22.5 gal (85.2 L) |
| Hydraulic System Relief Valve Pressure | 3481 psi (24000.7 kPa) |
| Hydraulic Pump Flow Capacity | 49.5 gal/min (187.4 L/min) |
| Travel Speed | 18.6 mph (30 km/h) |
| Tire Size | 7.5-15 14 PR Twin Tires |
