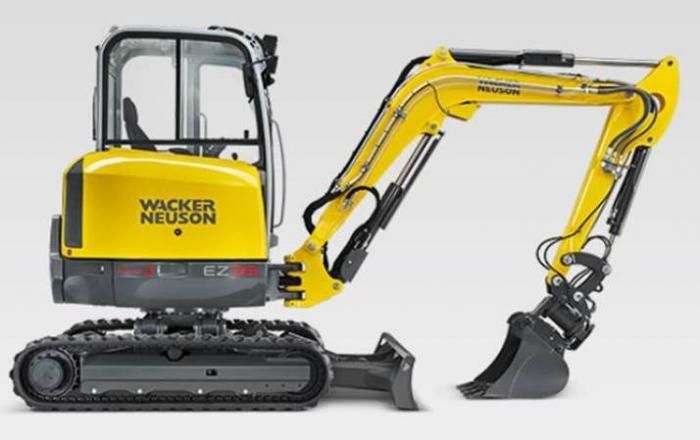

Wacker Neuson EZ38
Browse All Wacker Neuson or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 15.75 ft in (4798.07 mm) |
| Max Cutting Height | 14.86 ft in (4528.82 mm) |
| Shipping Height Of Unit | 8.2 ft in (2499.36 mm) |
| Max Loading Height | 10.89 ft in (3317.24 mm) |
| Max Reach Along Ground | 17.04 ft in (5191.76 mm) |
| Max Vertical Wall Digging Depth | 7.83 ft in (2385.06 mm) |
| Max Digging Depth | 10.2 ft in (3106.42 mm) |
| Boom/Stick Option (Hex) 1 | Standard arm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 15.29 ft in (4658.36 mm) |
| Shipping Length Of Unit | 15.83 ft in (4823.46 mm) |
| Max Loading Height | 11.31 ft in (3446.78 mm) |
| Shipping Height Of Unit | 8.2 ft in (2499.36 mm) |
| Max Reach Along Ground | 17.82 ft in (5430.52 mm) |
| Max Vertical Wall Digging Depth | 8.61 ft in (2623.82 mm) |
| Max Digging Depth | 11.02 ft in (3357.88 mm) |
| Boom/Stick Option (Hex) 2 | Long arm |
Dimensions
| Width To Outside Of Tracks | 3.25 ft in (990.6 mm) |
| Length Of Track On Ground | 15.75 ft in (4798.07 mm) |
| Ground Clearance | 0.92 ft in (279.4 mm) |
| Height To Top Of Cab | 8.2 ft in (2499.36 mm) |
Undercarriage
| Shoe Size | 11.8 in (299.73 mm) |
| Max Travel Speed | 2.7 mph (4.35 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | 3TNV88F |
| Gross Power | 24.4 hp (18.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 100.2 cu in (1.7 L) |
| Aspiration | Water-cooled |
Operational
| Operating Weight | 9863 lb (4473.8 kg) |
| Fuel Capacity | 11.6 gal (44 L) |
| Hydraulic System Fluid Capacity | 10.2 gal (38.7 L) |
| Hydraulic System Relief Valve Pressure | 3481 psi (24000.7 kPa) |
| Hydraulic Pump Flow Capacity | 30.1 gal/min (114 L/min) |
