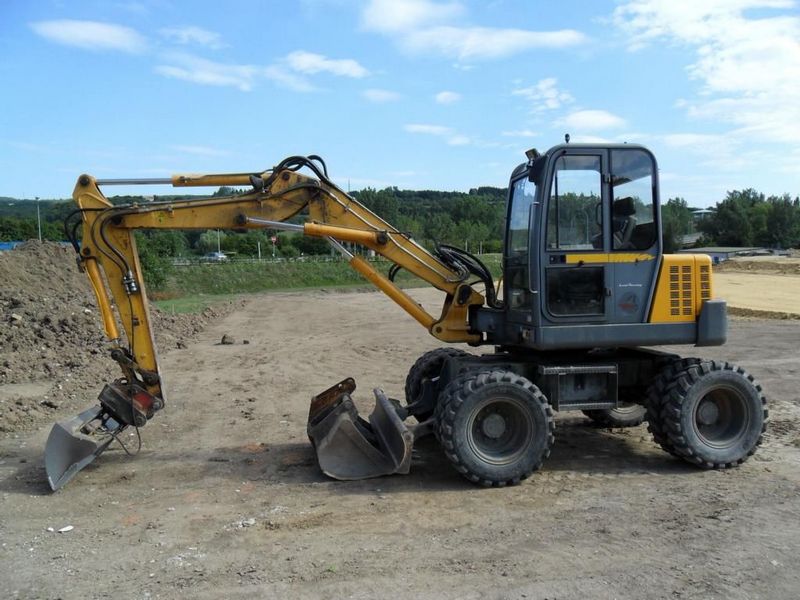

Volvo EW70
Browse All Volvo or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 19.34 ft in (5893 mm) |
| Shipping Height Of Unit | 9.73 ft in (2963 mm) |
| Max Cutting Height | 21.99 ft in (6702 mm) |
| Max Loading Height | 16.25 ft in (4950 mm) |
| Max Reach Along Ground | 20.85 ft in (6354 mm) |
| Max Vertical Wall Dig Depth | 6.37 ft in (1941 mm) |
| Max Digging Depth | 11.76 ft in (3583 mm) |
| Boom/Stick Option (Mex) 1 | Boom 3100mm/Stick 1800mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 19.34 ft in (5893 mm) |
| Shipping Height Of Unit | 9.73 ft in (2963 mm) |
| Max Cutting Height | 22.87 ft in (6970 mm) |
| Max Loading Height | 17.12 ft in (5218 mm) |
| Max Reach Along Ground | 22.26 ft in (6784 mm) |
| Max Vertical Wall Dig Depth | 7.5 ft in (2284 mm) |
| Max Digging Depth | 13.07 ft in (3983 mm) |
| Boom/Stick Option (Mex) 2 | Boom 3100mm/Stick 2200mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 9.73 ft in (2963 mm) |
| Shipping Length Of Unit | 20.28 ft in (6180 mm) |
| Max Cutting Height | 24.99 ft in (7615 mm) |
| Max Loading Height | 18.64 ft in (5680 mm) |
| Max Reach Along Ground | 22.15 ft in (6750 mm) |
| Max Vertical Wall Dig Depth | 9.42 ft in (2870 mm) |
| Max Digging Depth | 11.78 ft in (3590 mm) |
| Boom/Stick Option (Mex) 3 | Articulated Boom/Stick 1800mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 9.73 ft in (2963 mm) |
| Shipping Length Of Unit | 20.28 ft in (6180 mm) |
| Max Cutting Height | 26.2 ft in (7985 mm) |
| Max Loading Height | 19.85 ft in (6048 mm) |
| Max Reach Along Ground | 23.48 ft in (7154 mm) |
| Max Vertical Wall Dig Depth | 10.54 ft in (3210 mm) |
| Max Digging Depth | 13.1 ft in (3990 mm) |
| Boom/Stick Option (Mex) 4 | Articulated Boom/Stick 2200mm |
Dimensions
| Wheelbase | 6.73 ft in (2050 mm) |
| Tail Swing Radius | 5.21 ft in (1585 mm) |
| Overall Width | 7.44 in (2266 mm) |
| Ground Clearance | 1.19 ft in (361 mm) |
| Height To Top Of Cab | 9.73 ft in (2963 mm) |
| Upper Structure Clearance | 3.63 ft in (1105 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | S4S |
| Net Power | 55.3 hp (41.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 203.3 cu in (3.4 L) |
| Torque Measured @ | 1550 rpm |
| Net Torque | 144.6 lb ft (196 Nm) |
Operational
| Fuel Capacity | 29.1 gal (110 L) |
| Operating Weight | 15983.6 lb (7250 kg) |
| Cooling System Fluid Capacity | 4 gal (15 L) |
| Engine Oil Capacity | 2.7 gal (10 L) |
| Hydraulic System Fluid Capacity | 19.3 gal (73 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 3626 psi (25000 kPa) |
| Hydraulic Pump Type | gear pump |
| Hydraulic Pump Flow Capacity | 15.9 gal/min (60 L/min) |
| Tire Size | 8.25x20 |
Swing Mechanism
| Swing Speed | 11 rpm |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 12.8 mph (20.5 km/h) |
Buckets
| Reference Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
