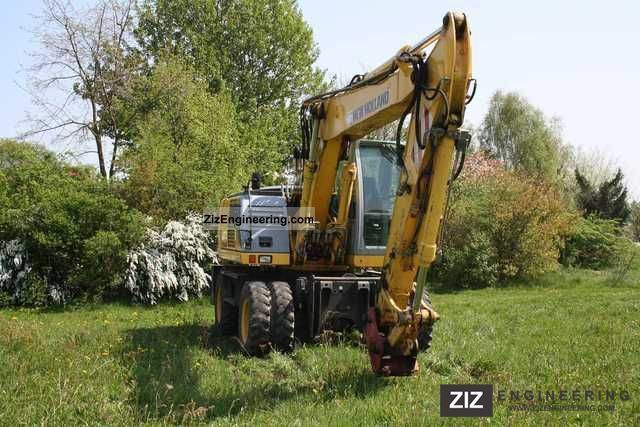

New Holland MHPlusC
Browse All New Holland or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 26.01 ft in (7925 mm) |
| Shipping Height Of Unit | 10.31 ft in (3140 mm) |
| Max Cutting Height | 30.81 ft in (9390 mm) |
| Max Loading Height | 21.31 ft in (6495 mm) |
| Max Reach Along Ground | 27.86 ft in (8490 mm) |
| Max Vertical Wall Dig Depth | 14.88 ft in (4535 mm) |
| Max Digging Depth | 18.08 ft in (5510 mm) |
| Boom/Stick Option (Mex) 1 | 2pc boom / stick 2200mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 26.07 ft in (7945 mm) |
| Shipping Height Of Unit | 10.31 ft in (3140 mm) |
| Max Cutting Height | 31.39 ft in (9565 mm) |
| Max Loading Height | 21.89 ft in (6670 mm) |
| Max Reach Along Ground | 28.53 ft in (8695 mm) |
| Max Vertical Wall Dig Depth | 15.61 ft in (4755 mm) |
| Max Digging Depth | 18.74 ft in (5710 mm) |
| Boom/Stick Option (Mex) 2 | 2pc boom / stick 2400mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.31 ft in (3140 mm) |
| Shipping Length Of Unit | 26.07 ft in (7945 mm) |
| Max Cutting Height | 31.86 ft in (9710 mm) |
| Max Loading Height | 22.4 ft in (6825 mm) |
| Max Reach Along Ground | 29.4 ft in (8960 mm) |
| Max Vertical Wall Dig Depth | 16.47 ft in (5020 mm) |
| Max Digging Depth | 19.69 ft in (6000 mm) |
| Boom/Stick Option (Mex) 3 | 2pc boom / stick 2700mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 11.16 ft in (3400 mm) |
| Shipping Length Of Unit | 26.05 ft in (7940 mm) |
| Max Cutting Height | 32.39 ft in (9870 mm) |
| Max Loading Height | 22.94 ft in (6990 mm) |
| Max Reach Along Ground | 30.43 ft in (9275 mm) |
| Max Vertical Wall Dig Depth | 17.44 ft in (5315 mm) |
| Max Digging Depth | 20.84 ft in (6350 mm) |
| Boom/Stick Option (Mex) 4 | 2pc boom / stick 3100mm |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 7.04 ft in (2145 mm) |
| Overall Width | 8.31 in (2530 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Overall Width - Outriggers Down | 11.9 ft in (3625 mm) |
| Height To Top Of Cab | 10.31 ft in (3140 mm) |
| Upper Structure Clearance | 4.01 ft in (1220 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | CNH F4BE0684B*D401 |
| Net Power | 160 hp (119.4 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbocharged with aftercooler |
Operational
| Operating Weight | 39793.5 lb (18050 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 8.2 gal (31 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Hydraulic System Fluid Capacity | 63.5 gal (240 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 66.6 gal/min (252 L/min) |
| Oscillating Axle Angle | 14 degrees |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9 rpm |
Transmission
| Max Travel Speed | 23 mph (37 km/h) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1.3 yd3 (1 m3) |
