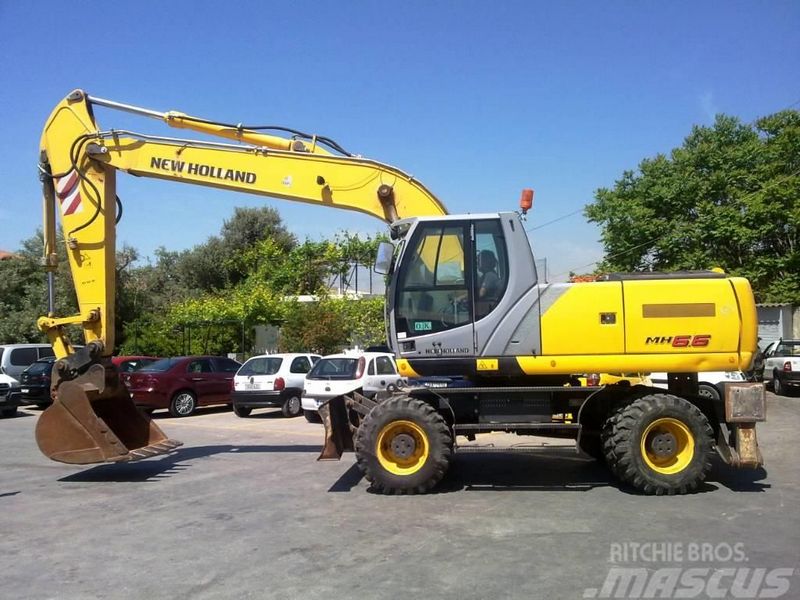

New Holland MH6.6
Browse All New Holland or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 30.96 ft in (9435 mm) |
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Max Cutting Height | 33.35 ft in (10165 mm) |
| Max Loading Height | 23.77 ft in (7245 mm) |
| Max Reach Along Ground | 30.32 ft in (9240 mm) |
| Max Vertical Wall Dig Depth | 14.11 ft in (4300 mm) |
| Max Digging Depth | 30.93 ft in (9425 mm) |
| Boom/Stick Option (Mex) 1 | 2pc boom / stick 2300mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 30.96 ft in (9435 mm) |
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Max Cutting Height | 33.6 ft in (10240 mm) |
| Max Loading Height | 24.07 ft in (7335 mm) |
| Max Reach Along Ground | 31.07 ft in (9470 mm) |
| Max Vertical Wall Dig Depth | 14.46 ft in (4405 mm) |
| Max Digging Depth | 31.67 ft in (9650 mm) |
| Boom/Stick Option (Mex) 2 | 2pc boom / stick 2600mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.62 ft in (3235 mm) |
| Shipping Length Of Unit | 30.86 ft in (9405 mm) |
| Max Cutting Height | 34.29 ft in (10450 mm) |
| Max Loading Height | 24.78 ft in (7550 mm) |
| Max Reach Along Ground | 32.04 ft in (9765 mm) |
| Max Vertical Wall Dig Depth | 15.36 ft in (4680 mm) |
| Max Digging Depth | 32.6 ft in (9935 mm) |
| Boom/Stick Option (Mex) 3 | 2pc boom / stick 2900mm |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Overall Width | 8.34 in (2540 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Overall Width - Outriggers Down | 12.8 ft in (3900 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
| Upper Structure Clearance | 4.17 ft in (1270 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | CNH - F4BE0684A |
| Net Power | 166 hp (123.8 kw) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbocharger and charge air cooling |
Operational
| Fuel Capacity | 85.9 gal (325 L) |
| Operating Weight | 47355.3 lb (21480 kg) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 5003.9 psi (34500 kPa) |
| Hydraulic Pump Type | 3 Variable Displacement, Axial Piston |
| Hydraulic Pump Flow Capacity | 135.3 gal/min (512 L/min) |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Transmission
| Max Travel Speed | 12.5 mph (20 km/h) |
| Drawbar Pull | 29225.2 lb (13256.4 kg) |
Buckets
| Reference Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.1 m3) |
