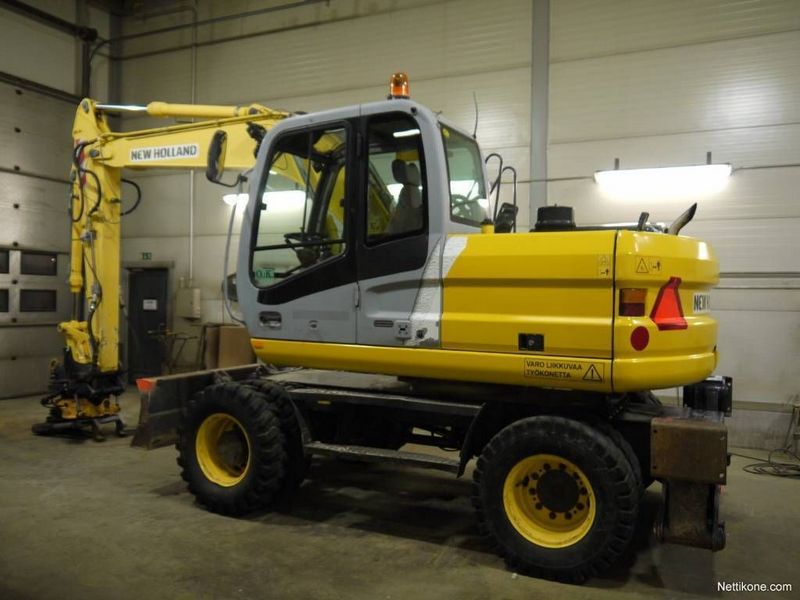

New Holland MH4.6
Browse All New Holland or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 25.4 ft in (7740 mm) |
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Max Cutting Height | 30.71 ft in (9360 mm) |
| Max Loading Height | 22.69 ft in (6915 mm) |
| Max Reach Along Ground | 26.66 ft in (8125 mm) |
| Max Vertical Wall Dig Depth | 12.95 ft in (3945 mm) |
| Max Digging Depth | 17 ft in (5180 mm) |
| Boom/Stick Option (Mex) 1 | triple articulation boom /stick 2100mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 25.68 ft in (7825 mm) |
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Max Cutting Height | 31.63 ft in (9640 mm) |
| Max Loading Height | 23.61 ft in (7195 mm) |
| Max Reach Along Ground | 27.86 ft in (8490 mm) |
| Max Vertical Wall Dig Depth | 14.56 ft in (4435 mm) |
| Max Digging Depth | 18.26 ft in (5565 mm) |
| Boom/Stick Option (Mex) 2 | triple articulation boom / stick 2500mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.91 ft in (3325 mm) |
| Shipping Length Of Unit | 25.1 ft in (7650 mm) |
| Max Cutting Height | 33.08 ft in (10080 mm) |
| Max Loading Height | 25.05 ft in (7635 mm) |
| Max Reach Along Ground | 29.52 ft in (8995 mm) |
| Max Vertical Wall Dig Depth | 16.23 ft in (4945 mm) |
| Max Digging Depth | 19.9 ft in (6065 mm) |
| Boom/Stick Option (Mex) 3 | triple articulation boom / stick 3000 |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 6.39 ft in (1945 mm) |
| Overall Width | 8.31 in (2530 mm) |
| Ground Clearance | 1.3 ft in (395 mm) |
| Overall Width - Outriggers Down | 12.01 ft in (3660 mm) |
| Height To Top Of Cab | 10.21 ft in (3110 mm) |
| Upper Structure Clearance | 3.96 ft in (1205 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | CNH F4BE0484E*D601 |
| Net Power | 118 hp (88 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 238 cu in (3.9 L) |
| Aspiration | Turbocharged with intercooler |
Operational
| Fuel Capacity | 66.1 gal (250 L) |
| Operating Weight | 35274 lb (16000 kg) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Engine Oil Capacity | 3.4 gal (12.5 L) |
| Hydraulic System Fluid Capacity | 52.9 gal (200 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic Pump Flow Capacity | 48.1 gal/min (182 L/min) |
| Oscillating Axle Angle | 14 degrees |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 8.3 rpm |
Transmission
| Max Travel Speed | 21.5 mph (34.5 km/h) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
