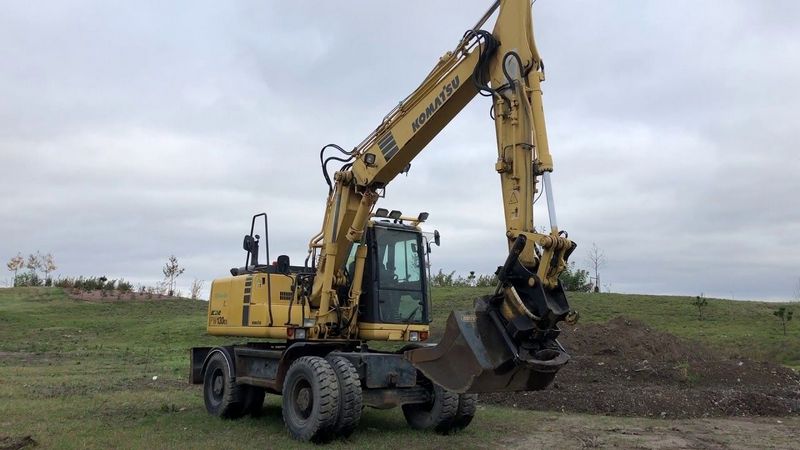

Komatsu PW130ES-6
Browse All Komatsu or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 24.91 ft in (7590 mm) |
| Shipping Height Of Unit | 10.03 ft in (3055 mm) |
| Max Cutting Height | 28.42 ft in (8660 mm) |
| Max Loading Height | 20.64 ft in (6290 mm) |
| Max Reach Along Ground | 25.23 ft in (7690 mm) |
| Max Vertical Wall Dig Depth | 13.7 ft in (4175 mm) |
| Max Digging Depth | 15.52 ft in (4730 mm) |
| Boom/Stick Option (Mex) 1 | Monoboom w/ arm 2100mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 24.43 ft in (7445 mm) |
| Shipping Height Of Unit | 11.34 ft in (3455 mm) |
| Max Cutting Height | 29.2 ft in (8900 mm) |
| Max Loading Height | 21.43 ft in (6530 mm) |
| Max Reach Along Ground | 26.48 ft in (8070 mm) |
| Max Vertical Wall Dig Depth | 14.97 ft in (4560 mm) |
| Max Digging Depth | 16.84 ft in (5130 mm) |
| Boom/Stick Option (Mex) 2 | Monoboom w/ arm 2500mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 12.95 ft in (3945 mm) |
| Shipping Length Of Unit | 18.81 ft in (5731 mm) |
| Max Cutting Height | 29.3 ft in (8930 mm) |
| Max Loading Height | 21.46 ft in (6540 mm) |
| Max Reach Along Ground | 26.07 ft in (7945 mm) |
| Max Vertical Wall Dig Depth | 13.06 ft in (3978 mm) |
| Max Digging Depth | 16.44 ft in (5010 mm) |
| Boom/Stick Option (Mex) 3 | Two piece boom w/ arm 2100mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 12.93 ft in (3940 mm) |
| Shipping Length Of Unit | 18.75 ft in (5715 mm) |
| Max Cutting Height | 30.16 ft in (9190 mm) |
| Max Loading Height | 22.66 ft in (6905 mm) |
| Max Reach Along Ground | 27.34 ft in (8331 mm) |
| Max Vertical Wall Dig Depth | 14.33 ft in (4365 mm) |
| Max Digging Depth | 17.75 ft in (5410 mm) |
| Boom/Stick Option (Mex) 4 | two piece boom w/ arm 2500mm |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 6.93 ft in (2112 mm) |
| Overall Width | 7.99 in (2435 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Height To Top Of Cab | 11.17 ft in (3403 mm) |
| Upper Structure Clearance | 3.97 ft in (1210 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SA4D102E-1 |
| Gross Power | 110 hp (82.1 kw) |
| Net Power | 105 hp (78.3 kw) |
| Power Measured @ | 2250 rpm |
| Displacement | 239.3 cu in (4 L) |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 66.1 gal (250 L) |
| Operating Weight | 33311.9 lb (15110 kg) |
| Cooling System Fluid Capacity | 4.2 gal (15.7 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Front Diff Fluid Capacity | 4 gal (15 L) |
| Rear Diff Fluid Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4622.6 psi (31871 kPa) |
| Hydraulic Pump Type | variable displacement piston |
| Hydraulic Pump Flow Capacity | 62.4 gal/min (236 L/min) |
| Oscillating Axle Angle | 14 degrees |
Swing Mechanism
| Swing Speed | 12 rpm |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Travel Speed | 18.7 mph (30 km/h) |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.2 m3) |
