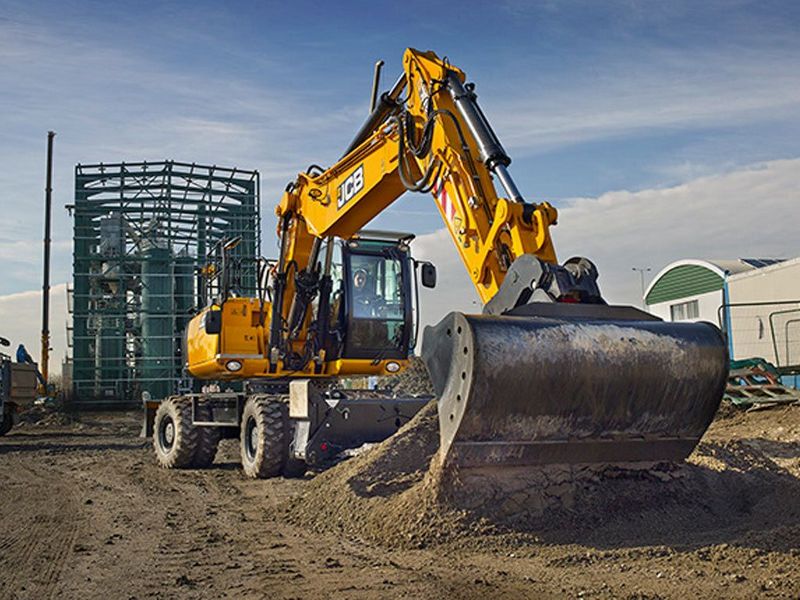

JCB JS200W
Browse All JCB or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 31.01 ft in (9450 mm) |
| Shipping Height Of Unit | 10.04 ft in (3060 mm) |
| Max Cutting Height | 30.16 ft in (9190 mm) |
| Max Loading Height | 21.23 ft in (6470 mm) |
| Max Reach Along Ground | 29.11 ft in (8870 mm) |
| Max Vertical Wall Dig Depth | 14.9 ft in (4540 mm) |
| Max Digging Depth | 17.26 ft in (5260 mm) |
| Boom/Stick Option (Mex) 1 | monoboom w/ 1910mm dipper |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 30.68 ft in (9350 mm) |
| Shipping Height Of Unit | 13.08 ft in (3985 mm) |
| Max Cutting Height | 30.94 ft in (9430 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 30.55 ft in (9310 mm) |
| Max Vertical Wall Dig Depth | 17.2 ft in (5240 mm) |
| Max Digging Depth | 19 ft in (5790 mm) |
| Boom/Stick Option (Mex) 2 | monoboom w/ 2400mm dipper |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 9.44 ft in (2875 mm) |
| Shipping Length Of Unit | 30.45 ft in (9280 mm) |
| Max Cutting Height | 31.6 ft in (9630 mm) |
| Max Loading Height | 22.91 ft in (6980 mm) |
| Max Reach Along Ground | 32.32 ft in (9850 mm) |
| Max Vertical Wall Dig Depth | 19.17 ft in (5840 mm) |
| Max Digging Depth | 20.9 ft in (6370 mm) |
| Boom/Stick Option (Mex) 3 | monoboom w/ 3000mm dipper |
Dimensions
| Overall Width | 8.17 in (2490 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Upper Structure Clearance | 4.3 ft in (1310 mm) |
Engine
| Air Filter Type | Dry element with secondary safety element and in cab warning indicator. |
| Starting System | 24 volt – 4kW |
| Number Of Cylinders | 4 |
| Engine Make | 0 |
| Engine Model | JCB EcoMAX 448 TCA-99 Eu Stage IIIB, EPA Tier 4 interim compliant |
| Engine Type | Water cooled, 4-stroke, 4-cylinder in-line, direct injection, turbocharged diesel. |
| Net Power | 138 hp (103 kw) |
| Power Measured @ | 1950 rpm |
| Battery | 2 x 12 volt Heavy Duty |
| Rated Power | 172 hp (128.3 kw) |
| Displacement | 293 cu in (4.8 L) |
| Alternator | 55 amps |
| Injection | Electronic injection. |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 81.9 gal (310 L) |
| Cooling System Fluid Capacity | 6.8 gal (25.5 L) |
| Engine Oil Capacity | 5.2 gal (19.5 L) |
| Hydraulic System Fluid Capacity | 52.9 gal (200 L) |
| Operational Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Type | load sensed hydraulic system with variable flow piston pump providing flow on demand for maximum efficiency |
| Hydraulic Pump Flow Capacity | 105.5 gal/min (399 L/min) |
| Oscillating Axle Angle | 17 degrees |
| Tire Size | twins: 11x20 10PR, singles: 18Rx22.5 (Radials) |
Swing Mechanism
| Swing Speed | 10 rpm |
Transmission
| Transmission Type | hydrostatic, powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 18.7 mph (30 km/h) |
