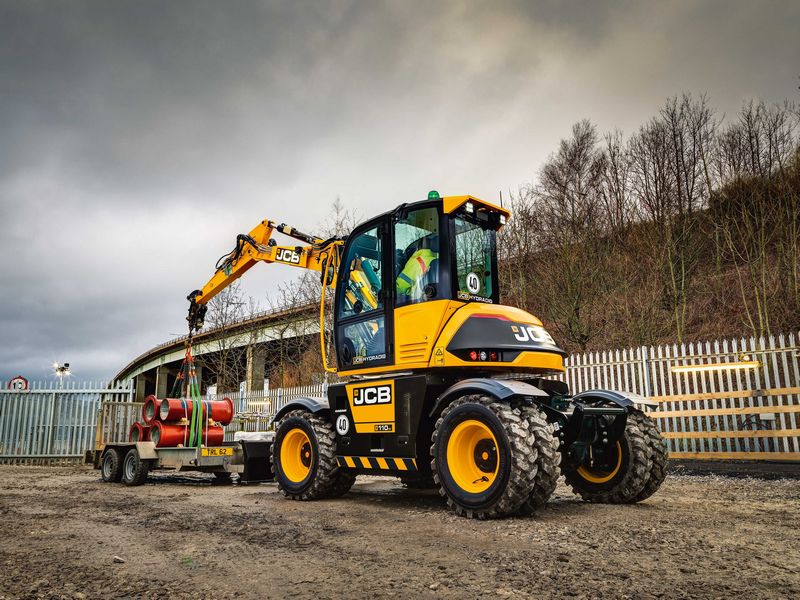

JCB HYDRADIG 110W
Browse All JCB or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 25.12 ft in (7654 mm) |
| Shipping Height Of Unit | 9.81 ft in (2988 mm) |
| Max Cutting Height | 26.89 ft in (8195 mm) |
| Max Loading Height | 20.94 ft in (6380 mm) |
| Max Reach Along Ground | 23.51 ft in (7165 mm) |
| Max Vertical Wall Dig Depth | 9.85 ft in (3000 mm) |
| Max Digging Depth | 12.5 ft in (3810 mm) |
| Boom/Stick Option (Mex) 1 | TAB - Dipper length - 1.65 m |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 25.37 ft in (7730 mm) |
| Shipping Height Of Unit | 9.81 ft in (2988 mm) |
| Max Cutting Height | 28.86 ft in (8795 mm) |
| Max Loading Height | 22.86 ft in (6965 mm) |
| Max Reach Along Ground | 25.55 ft in (7785 mm) |
| Max Vertical Wall Dig Depth | 11.62 ft in (3540 mm) |
| Max Digging Depth | 14.47 ft in (4410 mm) |
| Boom/Stick Option (Mex) 2 | TAB - Dipper length - 2.25 m |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.28 ft in (3132 mm) |
| Shipping Length Of Unit | 23.13 ft in (7050 mm) |
| Max Cutting Height | 21.15 ft in (6445 mm) |
| Max Loading Height | 15.46 ft in (4710 mm) |
| Max Reach Along Ground | 19.97 ft in (6085 mm) |
| Max Vertical Wall Dig Depth | 5.96 ft in (1815 mm) |
| Max Digging Depth | 11.06 ft in (3370 mm) |
| Boom/Stick Option (Mex) 3 | Monoboom - Dipper length - 1.65 m |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 11.28 ft in (3437 mm) |
| Shipping Length Of Unit | 22.79 ft in (6944 mm) |
| Max Cutting Height | 22.28 ft in (6790 mm) |
| Max Loading Height | 16.61 ft in (5060 mm) |
| Max Reach Along Ground | 21.97 ft in (6695 mm) |
| Max Vertical Wall Dig Depth | 7.75 ft in (2360 mm) |
| Max Digging Depth | 13.03 ft in (3970 mm) |
| Boom/Stick Option (Mex) 4 | Monoboom - Dipper length - 2.25 m |
Dimensions
| Wheelbase | 8.7 ft in (2650 mm) |
| Overall Width | 95.28 in (2420 mm) |
| Ground Clearance | 0.98 ft in (298 mm) |
| Height To Top Of Cab | 9.81 ft in (2988 mm) |
Slew System
| Slew Motor | Axial piston type |
| Slew Brake | Hydraulic braking plus automatic spring applied disc type parking brake |
| Slew Torque | 27.0 kNm |
| Slew Speed | 8.9 rpm |
| Slew Gear | 11 tooth pinion / 84 tooth ring |
Engine
| Torque | 380.6 lb ft (516 Nm) |
| Air Filter Type | Dry element with secondary safety element and in-cab warning sensor |
| Starting System | 12 V |
| Number Of Cylinders | 4 |
| Engine Model | JCB EcoMAX 444 TCA EU Stage IV EPA Tier 4 Final compliant |
| Engine Type | 4-stroke, 4-cylinder in-line, common rail, direct injection, turbocharged and intercooled diesel |
| Power Measured @ | 2200 rpm |
| Rated Power | 109 hp (81.3 kw) |
| Displacement | 268.6 cu in (4.4 L) |
| Torque Measured @ | 1500 rpm |
| Alternator | 150 amps |
Operational
| Operating Weight | 22504.8 lb (10208 kg) |
| Fuel Capacity | 41.5 gal (157 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Hydraulic System Relief Valve Pressure | 4061.1 psi (28000 kPa) |
| Hydraulic Pump Type | Electronically controlled system using two variable displacement piston pumps plus twin gear pumps for steering, brakes and cooling |
| Hydraulic Pump Flow Capacity | 41.9 gal/min (158.4 L/min) |
Transmission
| Max Travel Speed | 24.9 mph (40 km/h) |
Buckets
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
