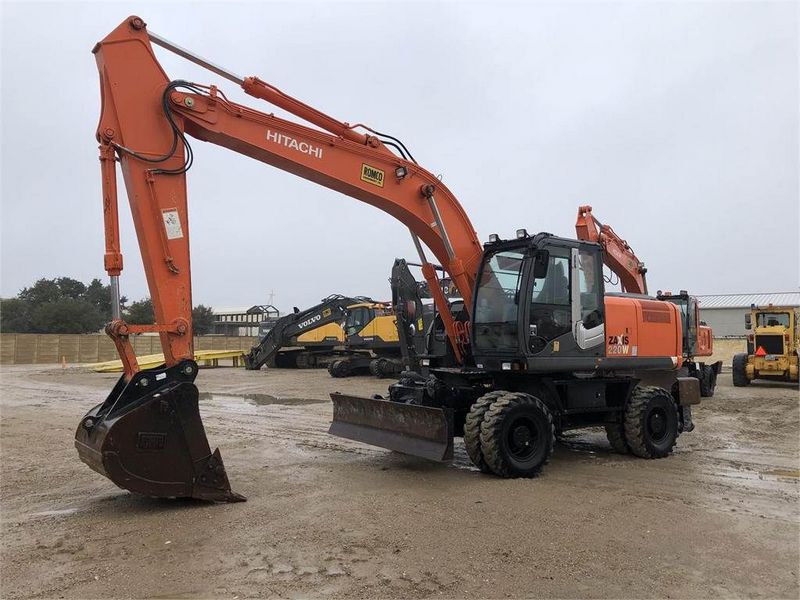

Hitachi ZX220W-3
Browse All Hitachi or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 31.83 ft in (9700 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 33.44 ft in (10190 mm) |
| Max Loading Height | 24.12 ft in (7350 mm) |
| Max Reach Along Ground | 32.68 ft in (9960 mm) |
| Max Vertical Wall Dig Depth | 18.38 ft in (5600 mm) |
| Max Digging Depth | 20.64 ft in (6290 mm) |
| Boom/Stick Option (Mex) 1 | Mono Boom |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 30.58 ft in (9320 mm) |
| Shipping Height Of Unit | 11.13 ft in (3390 mm) |
| Max Cutting Height | 34.65 ft in (10560 mm) |
| Max Loading Height | 25.04 ft in (7630 mm) |
| Max Reach Along Ground | 31.99 ft in (9750 mm) |
| Max Vertical Wall Dig Depth | 17.23 ft in (5250 mm) |
| Max Digging Depth | 19.95 ft in (6080 mm) |
| Boom/Stick Option (Mex) 2 | 2 Piece Boom |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Overall Width | 8.11 in (2470 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Overall Width - Outriggers Down | 11.29 ft in (3440 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Upper Structure Clearance | 4.04 ft in (1230 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | 4HK1X |
| Net Power | 159 hp (118.6 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 317 cu in (5.2 L) |
| Aspiration | Turbocharged and Aftercooled |
Operational
| Fuel Capacity | 93.8 gal (355 L) |
| Operating Weight | 49888.5 lb (22629 kg) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Engine Oil Capacity | 6.1 gal (23 L) |
| Front Diff Fluid Capacity | 2.6 gal (9.6 L) |
| Rear Diff Fluid Capacity | 3.5 gal (13.1 L) |
| Hydraulic System Fluid Capacity | 89.9 gal (340 L) |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Type | 2x piston pumps |
| Hydraulic Pump Flow Capacity | 100 gal/min (378.6 L/min) |
| Oscillating Axle Angle | 7 degrees |
Swing Mechanism
| Swing Speed | 12.2 rpm |
| Swing Torque | 43789.1 lb ft (59370 Nm) |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 17.1 mph (27.6 km/h) |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.7 m3) |
