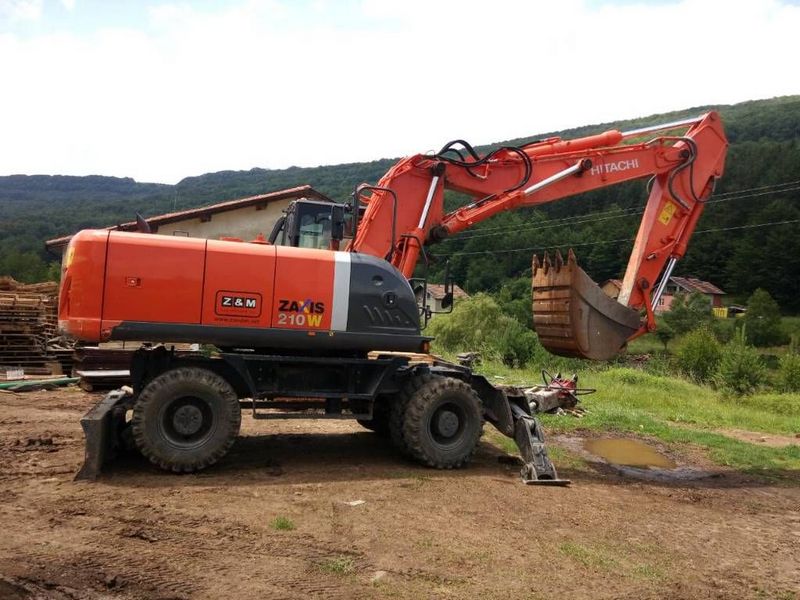

Hitachi ZX210W-3
Browse All Hitachi or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 32.32 ft in (9850 mm) |
| Shipping Height Of Unit | 10.6 ft in (3230 mm) |
| Max Cutting Height | 32.29 ft in (9840 mm) |
| Max Loading Height | 22.97 ft in (7000 mm) |
| Max Reach Along Ground | 31.04 ft in (9460 mm) |
| Max Vertical Wall Dig Depth | 16.84 ft in (5130 mm) |
| Max Digging Depth | 19.03 ft in (5800 mm) |
| Boom/Stick Option (Mex) 1 | Stick 2420mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 31.83 ft in (9700 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 33.44 ft in (10190 mm) |
| Max Loading Height | 24.12 ft in (7350 mm) |
| Max Reach Along Ground | 32.68 ft in (9960 mm) |
| Max Vertical Wall Dig Depth | 18.38 ft in (5600 mm) |
| Max Digging Depth | 20.64 ft in (6290 mm) |
| Boom/Stick Option (Mex) 2 | Stick 2910mm |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Overall Width | 8.31 in (2530 mm) |
| Ground Clearance | 1.07 ft in (325 mm) |
| Overall Width - Outriggers Down | 11.29 ft in (3440 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Upper Structure Clearance | 4.04 ft in (1230 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AI-4H1X |
| Net Power | 164 hp (122 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 316.9 cu in (5.2 L) |
| Torque Measured @ | 1500 rpm |
| Net Torque | 483.2 lb ft (655 Nm) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 43651.6 lb (19800 kg) |
| Fuel Capacity | 93.8 gal (355 L) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Engine Oil Capacity | 6.1 gal (23 L) |
| Front Diff Fluid Capacity | 2.6 gal (9.6 L) |
| Rear Diff Fluid Capacity | 3.5 gal (13.1 L) |
| Hydraulic System Fluid Capacity | 89.9 gal (340 L) |
| Operational Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Type | 2 variable displacement axial piston pumps |
| Hydraulic Pump Flow Capacity | 101.5 gal/min (384 L/min) |
| Oscillating Axle Angle | 14 degrees |
| Tire Size | 10.00-20 16 PR |
Swing Mechanism
| Swing Speed | 12.2 rpm |
Transmission
| Transmission Type | 2 speed power shift transmission and variable displacement asial piston type travel motor |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 17.1 mph (27.5 km/h) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.1 m3) |
