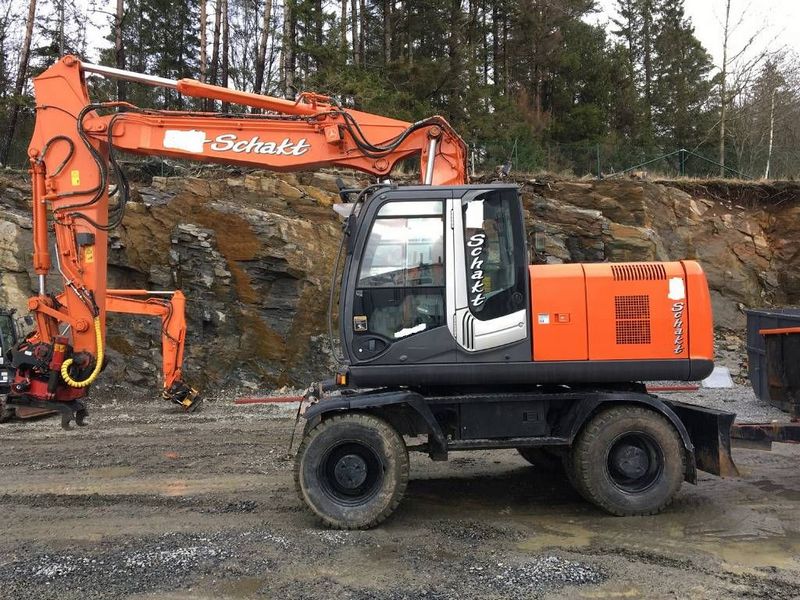

Hitachi ZX170W-3
Browse All Hitachi or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.52 ft in (8690 mm) |
| Shipping Height Of Unit | 10.47 ft in (3190 mm) |
| Max Cutting Height | 28.94 ft in (8820 mm) |
| Max Loading Height | 20.12 ft in (6130 mm) |
| Max Reach Along Ground | 27.89 ft in (8500 mm) |
| Max Vertical Wall Dig Depth | 14.57 ft in (4440 mm) |
| Max Digging Depth | 16.28 ft in (4960 mm) |
| Boom/Stick Option (Mex) 1 | Stick 2200mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 28.15 ft in (8580 mm) |
| Shipping Height Of Unit | 10.27 ft in (3130 mm) |
| Max Cutting Height | 29.86 ft in (9100 mm) |
| Max Loading Height | 20.87 ft in (6360 mm) |
| Max Reach Along Ground | 29.11 ft in (8870 mm) |
| Max Vertical Wall Dig Depth | 15.79 ft in (4810 mm) |
| Max Digging Depth | 17.49 ft in (5330 mm) |
| Boom/Stick Option (Mex) 2 | Stick 2580mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.27 ft in (3130 mm) |
| Shipping Length Of Unit | 28.29 ft in (8620 mm) |
| Max Cutting Height | 30.68 ft in (9350 mm) |
| Max Loading Height | 21.69 ft in (6610 mm) |
| Max Reach Along Ground | 30.62 ft in (9330 mm) |
| Max Vertical Wall Dig Depth | 17.46 ft in (5320 mm) |
| Max Digging Depth | 19.13 ft in (5830 mm) |
| Boom/Stick Option (Mex) 3 | Stick 3080mm |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Overall Width - Outriggers Down | 11.09 ft in (3380 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Upper Structure Clearance | 4.06 ft in (1235 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AI-4HK1X |
| Net Power | 143 hp (107 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 316.9 cu in (5.2 L) |
| Torque Measured @ | 1500 rpm |
| Net Torque | 398.3 lb ft (540 Nm) |
| Aspiration | Turbocharged, intercooled |
Operational
| Operating Weight | 36596.8 lb (16600 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Engine Oil Capacity | 6.1 gal (23 L) |
| Front Diff Fluid Capacity | 2.6 gal (9.5 L) |
| Rear Diff Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 63.5 gal (240 L) |
| Operational Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Type | 2 variable displacement axial piston pumps |
| Hydraulic Pump Flow Capacity | 105.7 gal/min (400 L/min) |
| Oscillating Axle Angle | 14 degrees |
| Tire Size | 10.00-20 16PR |
Swing Mechanism
| Swing Speed | 12.2 rpm |
Transmission
| Transmission Type | 2 speed power shift transmission and variable displacement axial piston type travel motor |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.8 mph (35 km/h) |
Buckets
| Reference Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.1 yd3 (0.9 m3) |
