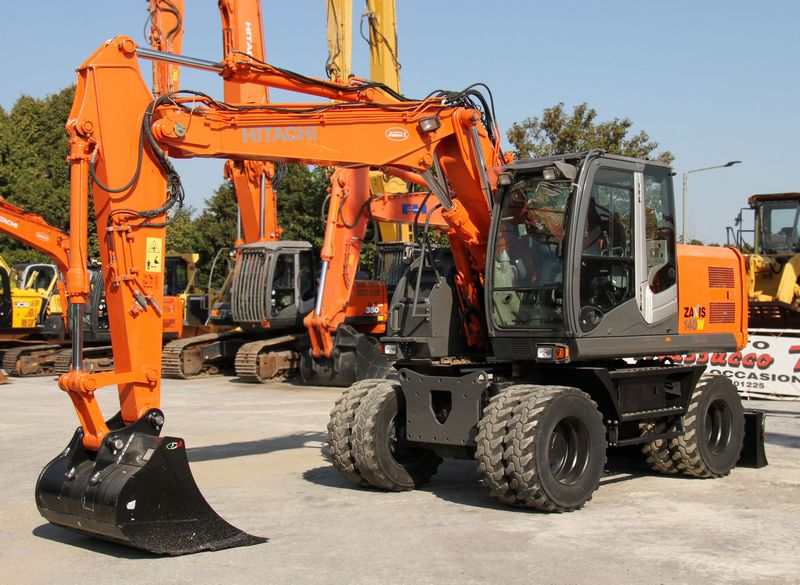

Hitachi ZX140W-3
Browse All Hitachi or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 25.23 ft in (7690 mm) |
| Shipping Height Of Unit | 10.27 ft in (3130 mm) |
| Max Cutting Height | 28.42 ft in (8660 mm) |
| Max Loading Height | 20.48 ft in (6240 mm) |
| Max Reach Along Ground | 25.73 ft in (7840 mm) |
| Max Vertical Wall Dig Depth | 13.49 ft in (4110 mm) |
| Max Digging Depth | 15.13 ft in (4610 mm) |
| Boom/Stick Option (Mex) 1 | Stick 2100mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 25.37 ft in (7730 mm) |
| Shipping Height Of Unit | 10.27 ft in (3130 mm) |
| Max Cutting Height | 29.04 ft in (8850 mm) |
| Max Loading Height | 21.13 ft in (6440 mm) |
| Max Reach Along Ground | 26.94 ft in (8210 mm) |
| Max Vertical Wall Dig Depth | 14.83 ft in (4520 mm) |
| Max Digging Depth | 16.51 ft in (5030 mm) |
| Boom/Stick Option (Mex) 2 | Stick 2520mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.63 ft in (3240 mm) |
| Shipping Length Of Unit | 25.3 ft in (7710 mm) |
| Max Cutting Height | 30.06 ft in (9160 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 28.52 ft in (8690 mm) |
| Max Vertical Wall Dig Depth | 16.38 ft in (4990 mm) |
| Max Digging Depth | 18.12 ft in (5520 mm) |
| Boom/Stick Option (Mex) 3 | Stick 3010mm |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Overall Width | 8.31 in (2530 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Overall Width - Outriggers Down | 11.09 ft in (3380 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Upper Structure Clearance | 3.99 ft in (1215 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AI-4JJ1X |
| Net Power | 121 hp (90.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 183.1 cu in (3 L) |
| Torque Measured @ | 1800 rpm |
| Net Torque | 296.5 lb ft (402 Nm) |
| Aspiration | Turbocharged, intercooled |
Operational
| Fuel Capacity | 66.1 gal (250 L) |
| Operating Weight | 32408 lb (14700 kg) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Front Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Rear Diff Fluid Capacity | 3.6 gal (13.3 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Operational Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Type | 2 variable displacement axial piston pumps |
| Hydraulic Pump Flow Capacity | 83.3 gal/min (315 L/min) |
| Oscillating Axle Angle | 14 degrees |
Swing Mechanism
| Swing Speed | 13.7 rpm |
Transmission
| Transmission Type | 2 speed power shift transmission and variable displacement axial piston type travel motor |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.8 mph (35 km/h) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
