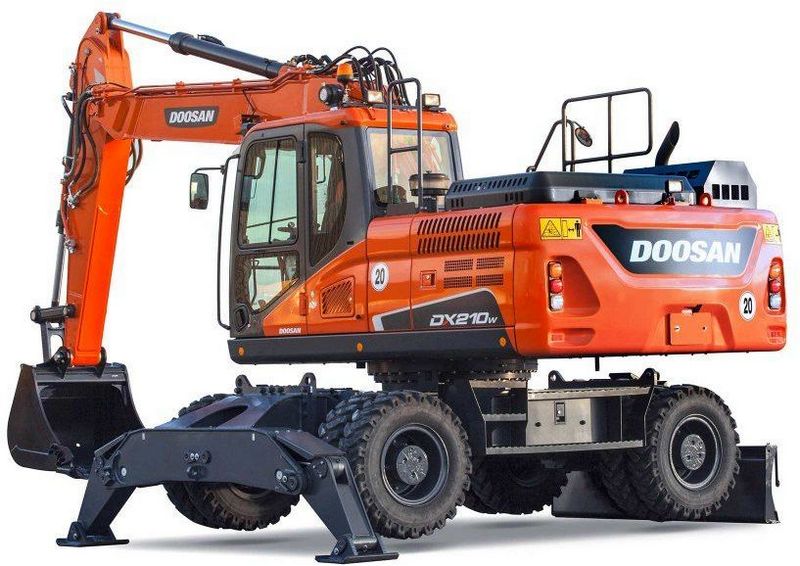

Doosan DX210W-5
Browse All Doosan or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 30.1 ft in (9174.48 mm) |
| Shipping Height Of Unit | 10.1 ft in (3078.48 mm) |
| Max Loading Height | 23.4 ft in (7132.32 mm) |
| Max Reach Along Ground | 31.1 ft in (9479.29 mm) |
| Max Digging Depth | 19.4 ft in (5913.12 mm) |
| Arm Digging Force(Iso) | 24030 lb (106.9 kN) |
| Boom/Stick Option (Mex) 1 | Boom length 18.37ft / Arm length 9.02ft |
| Bucket Digging Force (Iso) | 31306 lb (139.26 kN) |
Dimensions
| Wheelbase | 9.4 ft in (2865.12 mm) |
| Height To Top Of Cab | 10.3 ft in (3139.44 mm) |
| Shipping Width | 99.6 in (2529.84 mm) |
Engine
| Emission Tier Level | Tier 4 |
| Gross Power | 189.1 hp (141.1 kw) |
| Net Power | 186.4 hp (139 kw) |
| Power Measured @ | 1900 rpm |
| Torque Measured @ | 1400 rpm |
| Net Torque | 593 lb ft (804.1 Nm) |
Operational
| Fuel Capacity | 79.3 gal (300 L) |
| Operating Weight | 47179 lb (21400.1 kg) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Engine Oil Capacity | 6.6 gal (25 L) |
| Hydraulic System Fluid Capacity | 54.2 gal (205.1 L) |
| Hydraulic Tank | 54.2 gal (205.1 L) |
Transmission
| Maximum Traction Force | 27172 lb (12325.1 kg) |
Swing Mechanism
| Swing Speed | 9.8 rpm |
| Swing Torque | 59224 lb ft (80297 Nm) |
Transmission
| Max Travel Speed | 21.8 mph (35.1 km/h) |
| Min Travel Speed | 5.6 mph (9 km/h) |
Buckets
| Reference Bucket Capacity | 1.2 yd3 (0.9 m3) |
Lift
| Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground | 27539 lb ft (37337.9 Nm) |
| Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground | 19952 lb ft (27051.3 Nm) |
| Lifting Capacity Over Front @ Horizontal Distance - Ground Level | 24052 lb ft (32610.2 Nm) |
Hydraulic
| Main Pump Flow Standard | 62.4 gal (236 L) |
| Relief Pressure - Boost | 5076.4 psi (35000 kPa) |
| Relief Pressure -Normal | 5076.4 psi (35000 kPa) |
