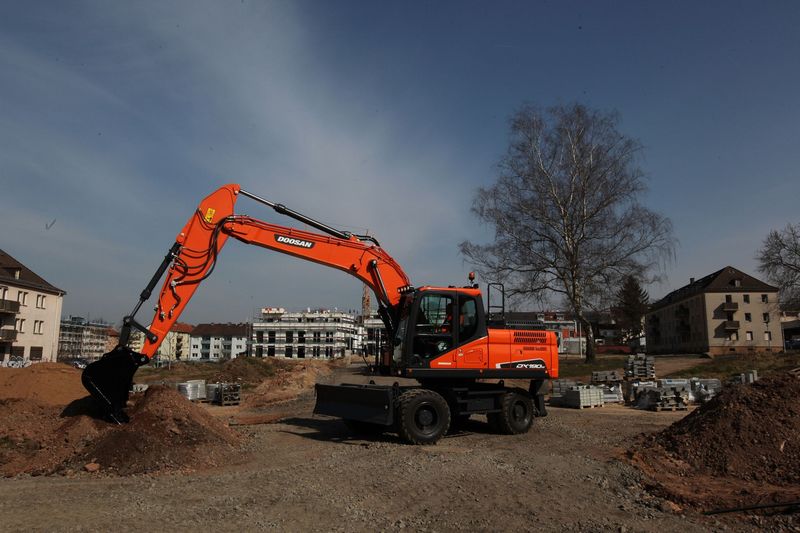

Doosan DX190W-5
Browse All Doosan or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.8 ft in (8778.24 mm) |
| Shipping Height Of Unit | 9.31 ft in (2834.64 mm) |
| Max Loading Height | 22.2 ft in (6766.56 mm) |
| Max Reach Along Ground | 29.8 ft in (9083.05 mm) |
| Max Digging Depth | 18.9 ft in (5760.72 mm) |
| Arm Digging Force(Sae) | 20944 lb (93.17 kN) |
| Bucket Digging Force(Sae) | 28219 lb (12799.93 kg) |
Dimensions
| Wheelbase | 8.81 ft in (2682.24 mm) |
| Height To Top Of Cab | 10.3 ft in (3139.44 mm) |
| Shipping Width | 36 in (914.4 mm) |
Engine
| Engine Make | Doosan |
| Engine Model | DX190W-5 |
| Gross Power | 173.5 hp (129.4 kw) |
| Net Power | 167.6 hp (125 kw) |
| Power Measured @ | 1900 rpm |
| Torque Measured @ | 1400 rpm |
| Net Torque | 557 lb ft (755.2 Nm) |
Operational
| Fuel Capacity | 81.9 gal (310 L) |
| Operating Weight | 43431 lb (19700 kg) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Engine Oil Capacity | 6.6 gal (25 L) |
| Hydraulic Tank | 30.7 gal (116 L) |
Transmission
| Maximum Traction Force | 79708 lb (36155 kg) |
Swing Mechanism
| Swing Speed | 10.9 rpm |
Transmission
| Max Travel Speed | 21.8 mph (35.1 km/h) |
Hydraulic
| Main Pump Flow Standard | 0.1 gal (0.2 L) |
| Relief Pressure - Boost | 5076.4 psi (35000 kPa) |
| Relief Pressure -Normal | 5076.4 psi (35000 kPa) |
