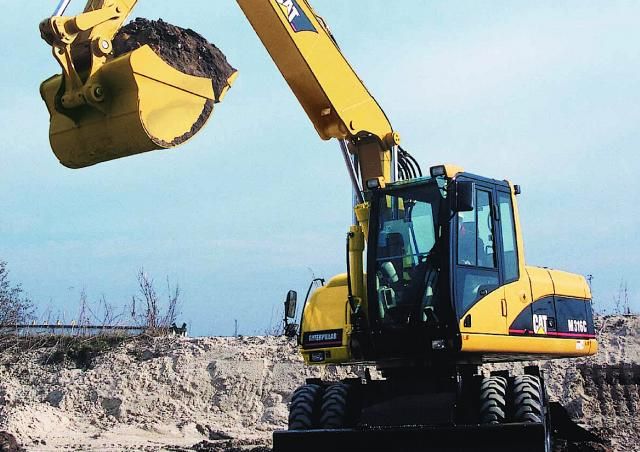

Caterpillar M316C
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.06 ft in (8550 mm) |
| Shipping Height Of Unit | 13 ft in (3960 mm) |
| Max Cutting Height | 33.01 ft in (10060 mm) |
| Max Loading Height | 22.87 ft in (6970 mm) |
| Max Reach Along Ground | 29.24 ft in (8910 mm) |
| Max Vertical Wall Dig Depth | 12.14 ft in (3700 mm) |
| Max Digging Depth | 18.28 ft in (5570 mm) |
| Boom/Stick Option (Mex) 1 | VA Boom 5200mm / Stick 2100mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 28.06 ft in (8550 mm) |
| Shipping Height Of Unit | 13 ft in (3960 mm) |
| Max Cutting Height | 33.63 ft in (10250 mm) |
| Max Loading Height | 23.5 ft in (7160 mm) |
| Max Reach Along Ground | 30.16 ft in (9190 mm) |
| Max Vertical Wall Dig Depth | 12.8 ft in (3900 mm) |
| Max Digging Depth | 19.26 ft in (5870 mm) |
| Boom/Stick Option (Mex) 2 | VA Boom 5200mm / Stick 2400mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 13 ft in (3960 mm) |
| Shipping Length Of Unit | 28.02 ft in (8540 mm) |
| Max Cutting Height | 34.13 ft in (10400 mm) |
| Max Loading Height | 24.02 ft in (7320 mm) |
| Max Reach Along Ground | 30.78 ft in (9380 mm) |
| Max Vertical Wall Dig Depth | 13.36 ft in (4070 mm) |
| Max Digging Depth | 19.92 ft in (6070 mm) |
| Boom/Stick Option (Mex) 3 | VA Boom 5200mm / Stick 2600mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Shipping Length Of Unit | 27.53 ft in (8390 mm) |
| Max Cutting Height | 29.53 ft in (9000 mm) |
| Max Loading Height | 19.76 ft in (6020 mm) |
| Max Reach Along Ground | 28.58 ft in (8710 mm) |
| Max Vertical Wall Dig Depth | 11.46 ft in (3490 mm) |
| Max Digging Depth | 17.62 ft in (5370 mm) |
| Boom/Stick Option (Mex) 4 | Boom 5050mm / Stick 2100mm |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 7.52 ft in (2290 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.24 ft in (375 mm) |
| Overall Width - Outriggers Down | 12.07 ft in (3676 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Upper Structure Clearance | 4.2 ft in (1280 mm) |
Engine
| Cylinders | 6 |
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3056E DIT ATAAC |
| Net Power | 138 hp (103 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 366 cu in (6 L) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 461 lb ft (625 Nm) |
| Bore | 3.9 in (99.1 mm) |
| Stroke | 5 in (127 mm) |
| Aspiration | Turbocharged with Aftercooler |
| Engine Model | Cat 3056E ATAAC |
| Flywheel Power | 138 hp (103 kw) |
| Eec 80/1269 | 138 hp (103 kw) |
| Iso 9249 | 138 hp (103 kw) |
| Maximum Torque - 1,400 Rpm | 461 lb ft (625.1 Nm) |
Operational
| Operating Weight | 39352.6 lb (17850 kg) |
| Fuel Capacity | 81.9 gal (310 L) |
| Cooling System Fluid Capacity | 10.4 gal (39 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Front Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Rear Diff Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 64.8 gal/min (245 L/min) |
| Oscillating Axle Angle | 18 degrees |
| Max Steering Angle | 32 degrees |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 10.5 rpm |
| Swing Torque | 29575 lb ft (40098.4 Nm) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.2 mph (34 km/h) |
| Creeper Speed - 2nd Gear | 8.1 mph (13.1 km/h) |
| Maximum Travel Speed | 21 mph (33.8 km/h) |
| Forward/Reverse - 1st Gear | 5.6 mph (9.1 km/h) |
| Creeper Speed - 1st Gear | 2.5 mph (4.1 km/h) |
| Maximum Gradeability | 69 |
Swing Mechanism
| Maximum Flow | 21.1 gal/min |
| Pressure | 5366 psi |
Transmission
| 2nd Gear - Forward | 21 mph (33.8 km/h) |
| 2nd Gear - Reverse | 12.4 mph (20 km/h) |
Tires
| Standard | 10.00-20 dual pneumatic |
| Optional | 10.00-20 dual solid rubber; 18-R 19.5 XF single; 600/40-22.5 single; 11.00-20 dual |
Weights
| Counterweight | 8160 lb (3701.4 kg) |
| Dozer Blade | 1675 lb (759.8 kg) |
| Outriggers | 2250 lb (1020.6 kg) |
| Rear - Dozer Only (1) | 36930 lb (16751.2 kg) |
| Front And Rear Outriggers (1) | 40120 lb (18198.2 kg) |
| Rear - Dozer, Front Outriggers (2) | 38250 lb (17350 kg) |
| Rear - Dozer, Front Outriggers (1) | 39350 lb (17848.9 kg) |
| Rear - Dozer Only (2) | 35940 lb (16302.2 kg) |
| Front And Rear Outriggers (2) | 39020 lb (17699.2 kg) |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.3 yd3 (1 m3) |
Hydraulic System
| Travel Circuit | 5076 psi |
| Normal | 5076 psi |
| Medium Pressure | 450 psi |
| Implement/Travel Circuit | 65 gal/min |
Operating Specifications
| Maximum Reach - Ground Level | 30.3 ft in (9.3 m) |
Service Refill Capacities
| Fuel Tank | 81.9 gal (310.1 L) |
| Hydraulic Tank | 36 gal (136.3 L) |
| Hydraulic System - Including Tank | 61 gal (231 L) |
| Engine Crankcase | 4.8 gal (18.2 L) |
| Powershift Transmission | 0.8 gal (3.1 L) |
| Front Steering Axle - Differential | 2.1 gal (8 L) |
| Rear Axle - Housing (Differential) | 2.9 gal (11 L) |
| Cooling | 10.3 gal (39 L) |
| Disk Brakes | 0.5 gal (1.9 L) |
Cab
| Cab/Fogs Option | ISO 10262 |
