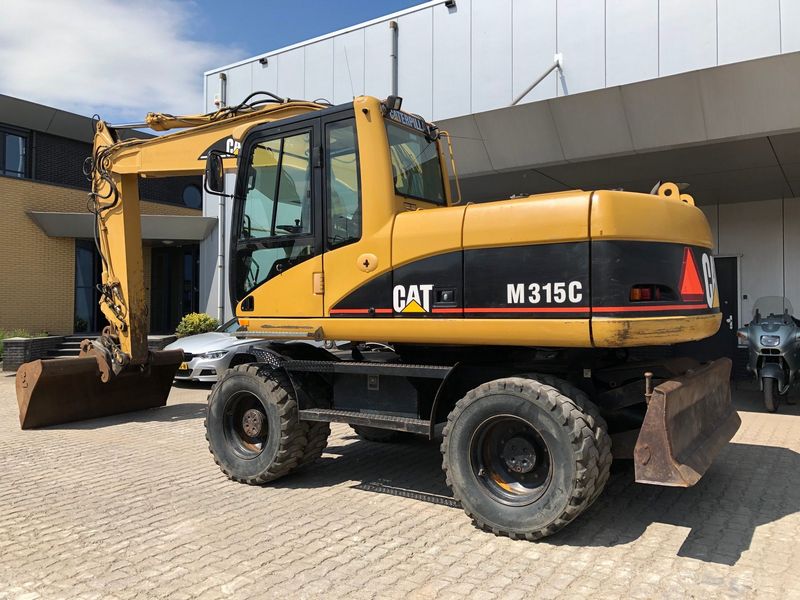

Caterpillar M315C
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 27.83 ft in (8480 mm) |
| Shipping Height Of Unit | 13.06 ft in (3980 mm) |
| Max Cutting Height | 32.94 ft in (10040 mm) |
| Max Loading Height | 22.81 ft in (6950 mm) |
| Max Reach Along Ground | 29.24 ft in (8910 mm) |
| Max Vertical Wall Dig Depth | 12.21 ft in (3720 mm) |
| Max Digging Depth | 18.34 ft in (5590 mm) |
| Boom/Stick Option (Mex) 1 | VA Boom 5200mm / Stick 2100mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 27.79 ft in (8470 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 34.06 ft in (10380 mm) |
| Max Loading Height | 23.96 ft in (7300 mm) |
| Max Reach Along Ground | 30.78 ft in (9380 mm) |
| Max Vertical Wall Dig Depth | 13.42 ft in (4090 mm) |
| Max Digging Depth | 19.99 ft in (6090 mm) |
| Boom/Stick Option (Mex) 2 | VA Boom 5200mm / Stick 2600mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 13.06 ft in (3980 mm) |
| Shipping Length Of Unit | 27.3 ft in (8320 mm) |
| Max Cutting Height | 29.47 ft in (8980 mm) |
| Max Loading Height | 19.69 ft in (6000 mm) |
| Max Reach Along Ground | 28.58 ft in (8710 mm) |
| Max Vertical Wall Dig Depth | 11.52 ft in (3510 mm) |
| Max Digging Depth | 17.69 ft in (5390 mm) |
| Boom/Stick Option (Mex) 3 | One-piece Boom 5050mm / Stick 2100mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Shipping Length Of Unit | 27.33 ft in (8330 mm) |
| Max Cutting Height | 30.16 ft in (9190 mm) |
| Max Loading Height | 20.44 ft in (6230 mm) |
| Max Reach Along Ground | 30.09 ft in (9170 mm) |
| Max Vertical Wall Dig Depth | 12.54 ft in (3820 mm) |
| Max Digging Depth | 19.33 ft in (5890 mm) |
| Boom/Stick Option (Mex) 4 | One-piece Boom 5050mm / Stick 2600mm |
Dimensions
| Wheelbase | 8.21 ft in (2500 mm) |
| Tail Swing Radius | 7.21 ft in (2197 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Overall Width - Outriggers Down | 12.03 ft in (3665 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3054E |
| Net Power | 124 hp (92.5 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 368.8 lb ft (500 Nm) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 62.1 gal (235 L) |
| Operating Weight | 36707 lb (16650 kg) |
| Cooling System Fluid Capacity | 10.4 gal (39 L) |
| Engine Oil Capacity | 2.4 gal (9 L) |
| Front Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Rear Diff Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Operational Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic Pump Flow Capacity | 21.2 gal/min (80 L/min) |
| Oscillating Axle Angle | 18 degrees |
| Max Steering Angle | 32 degrees |
| Tire Size | 10.00-20 16PR |
Swing Mechanism
| Swing Speed | 10.5 rpm |
| Swing Torque | 29576.3 lb ft (40100 Nm) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.2 mph (34 km/h) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1.2 yd3 (1 m3) |
