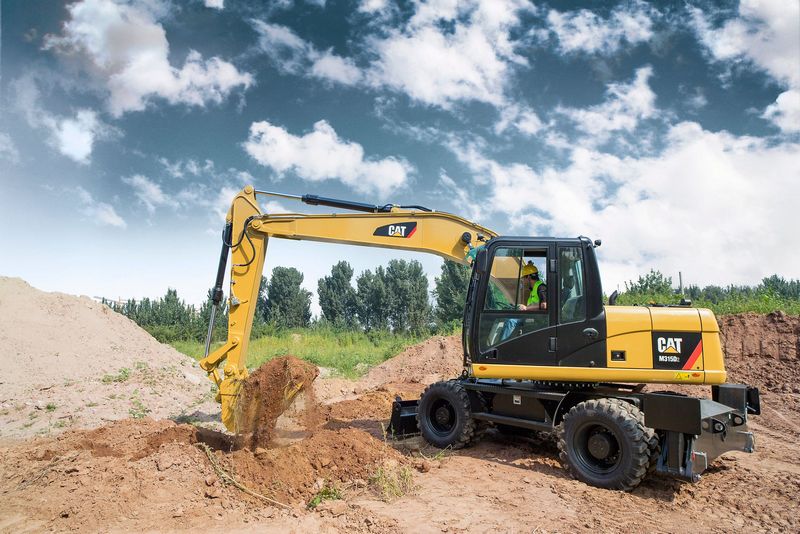

Caterpillar M315D
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 27.83 ft in (8480 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 32.94 ft in (10040 mm) |
| Max Loading Height | 22.81 ft in (6950 mm) |
| Max Reach Along Ground | 29.24 ft in (8910 mm) |
| Max Vertical Wall Dig Depth | 12.21 ft in (3720 mm) |
| Max Digging Depth | 18.34 ft in (5590 mm) |
| Boom/Stick Option (Mex) 1 | VA Boom / stick 2.1m |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 27.79 ft in (8470 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 34.06 ft in (10380 mm) |
| Max Loading Height | 23.96 ft in (7300 mm) |
| Max Reach Along Ground | 30.78 ft in (9380 mm) |
| Max Vertical Wall Dig Depth | 13.42 ft in (4090 mm) |
| Max Digging Depth | 19.99 ft in (6090 mm) |
| Boom/Stick Option (Mex) 2 | VA Boom / stick 2.6m |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Shipping Length Of Unit | 27.3 ft in (8320 mm) |
| Max Cutting Height | 29.47 ft in (8980 mm) |
| Max Loading Height | 19.69 ft in (6000 mm) |
| Max Reach Along Ground | 28.58 ft in (8710 mm) |
| Max Vertical Wall Dig Depth | 11.52 ft in (3510 mm) |
| Max Digging Depth | 17.69 ft in (5390 mm) |
| Boom/Stick Option (Mex) 3 | One-piece Boom / stick 2.1m |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Shipping Length Of Unit | 27.83 ft in (8480 mm) |
| Max Cutting Height | 32.94 ft in (10040 mm) |
| Max Loading Height | 22.81 ft in (6950 mm) |
| Max Reach Along Ground | 29.24 ft in (8910 mm) |
| Max Vertical Wall Dig Depth | 12.21 ft in (3720 mm) |
| Max Digging Depth | 18.34 ft in (5590 mm) |
| Boom/Stick Option (Mex) 4 | Offset Boom / stick 2.1m |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 7.27 ft in (2215 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Overall Width - Outriggers Down | 12.03 ft in (3665 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Upper Structure Clearance | 4.15 ft in (1262 mm) |
| Support Point | 140.16 in (3560.07 mm) |
| Counterweight Clearance | 4.14 ft in (1261.88 mm) |
Undercarriage
| Ground Clearance | 1.25 ft in (381 mm) |
| Oscillation Axle Angle | 9 degrees |
| Minimum Turning Radius - End Of One-Piece Boom | 27 ft in (8.23 m) |
| Minimum Turning Radius - Outside Of Tire | 21 ft in (6.41 m) |
| Minimum Turning Radius - End Of Va Boom | 23 ft in (7.02 m) |
Fuel Tank
| Fuel Tank Capacity | 62.1 gal (235 L) |
Engine
| Cylinders | 4 |
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | C4.4 Acert |
| Gross Power | 145 hp (108.2 kw) |
| Net Power | 135 hp (100.7 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 269 cu in (4.5 L) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 406 lb ft (550.5 Nm) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 137 hp (102.2 kw) |
| Engine Model | Cat C4.4 ACERT |
| Eec 80/1269 | 135 hp (100.7 kw) |
| Iso 9249 | 135 hp (100.7 kw) |
| Maximum Torque - 1,400 Rpm | 406 lb ft (550.5 Nm) |
| Ratings | 2000 rpm |
| Net Power - 2,000 Rpm - Iso 9249 (Din) | 137 hp (102.2 kw) |
Operational
| Operating Weight | 39462.8 lb (17900 kg) |
| Fuel Capacity | 62.1 gal (235 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 2.2 gal (8 L) |
| Front Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Rear Diff Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 5076 psi (34997.8 kPa) |
| Hydraulic Pump Type | Piston |
| Hydraulic Pump Flow Capacity | 58.2 gal/min (220 L/min) |
| Oscillating Axle Angle | 9 degrees |
| Max Steering Angle | 35 degrees |
| Tire Size | 10.00-20 16PR, dual |
Swing Mechanism
| Swing Speed | 10.5 rpm |
| Swing Torque | 29502 lb ft (39999.4 Nm) |
Transmission
| Transmission Type | Gear |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.2 mph (34 km/h) |
| Drawbar Pull | 21806 lb (9891.1 kg) |
| Creeper Speed - 2nd Gear | 8 mph (12.9 km/h) |
| Maximum Travel Speed | 21 mph (33.8 km/h) |
| Forward/Reverse - 1st Gear | 5 mph (8.1 km/h) |
| Creeper Speed - 1st Gear | 2 mph (3.3 km/h) |
| Forward/Reverse - 2nd Gear | 21 mph (33.8 km/h) |
| Maximum Gradeability | 69 % |
Swing Mechanism
| Maximum Pressure | 5366.39 psi |
Tires
| Standard | 10.00-20 dual pneumatic |
| Optional | See Optional Equipment |
Weights
| Counterweight | 7716 lb (3500 kg) |
| Counterweights - Standard | 7700 lb (3492.7 kg) |
| Counterweights - Optional | 8590 lb (3896.4 kg) |
| Dozer Blade | 1653 lb (749.8 kg) |
| Outriggers | 2116 lb (959.9 kg) |
| Rear - Dozer Only (1) | 33731 lb (15300.2 kg) |
| Front And Rear Outriggers (1) | 36486 lb (16549.8 kg) |
| Rear - Dozer, Front Outriggers (2) | 36927.4 lb (16750 kg) |
| Rear - Dozer, Front Outriggers (1) | 35825 lb (16250 kg) |
| Rear - Dozer Only (2) | 34833 lb (15800 kg) |
| Front And Rear Outriggers (2) | 37588.8 lb (17050 kg) |
| Rear - Dozer Only (3) | 32739 lb (14850.2 kg) |
| Rear - Dozer, Front Outriggers (3) | 34833 lb (15800 kg) |
| Front And Rear Outriggers (3) | 35494 lb (16099.9 kg) |
| Va Boom* - Rear Dozer Only | 34880 lb (15821.4 kg) |
| Va Boom* - Rear Dozer, Front Outriggers | 36970 lb (16769.4 kg) |
| Va Boom* - Front And Rear Outriggers | 37630 lb (17068.7 kg) |
| Sticks - Short (2100 Mm) | 1035 lb (469.5 kg) |
| Sticks - Medium (2400 Mm) | 1132 lb (513.5 kg) |
| One-Piece Boom* - Rear Dozer Only | 33780 lb (15322.4 kg) |
| Sticks - Long (2600 Mm) | 1167 lb (529.4 kg) |
| Offset Boom* - Front And Rear Outriggers | 38623 lb (17519.1 kg) |
| Offset Boom* - Rear Dozer Only | 35870 lb (16270.4 kg) |
| Offset Boom* - Rear Dozer, Front Outriggers | 37960 lb (17218.4 kg) |
| One-Piece Boom* - Front And Rear Outriggers | 36530 lb (16569.8 kg) |
| One-Piece Boom* - Rear Dozer, Front Outriggers | 35870 lb (16270.4 kg) |
| 2.6 M (8'6") Stick | 1168 lb (529.8 kg) |
| 2.4 M (7'10") Stick | 1133 lb (514 kg) |
| 3.1 M (10'2") Industrial Stick | 992 lb (450 kg) |
| 2.1 M (6'11") Stick | 1036 lb (470 kg) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.2 m3) |
Hydraulic System
| Travel Circuit | 5076 psi |
| System | 67.3 gal (US) |
| Normal | 5076 psi |
| Tank Capacity | 35.6 gal (134.8 L) |
| Maximum Pressure - Auxiliary Circuit - High Pressure | 5076 psi |
| Maximum Pressure - Implement Circuit - Normal | 5076 psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5439 psi |
| Maximum Pressure - Auxiliary Circuit - Medium Pressure | 2683 psi |
| Maximum Pressure - Travel Circuit | 5076 psi |
| Maximum Flow - Implement/Travel Circuit | 58 gal/min |
| Maximum Flow - Swing Mechanism | 21.1 gal/min |
| Maximum Flow - Auxiliary Circuit - High Pressure | 58 gal/min |
| Maximum Flow - Auxiliary Circuit - Medium Pressure | 13.2 gal/min |
| Maximum Pressure - Swing Mechanism | 5366 psi |
| Implement/Travel Circuit | 58 gal/min |
| Heavy Lift | 5439 psi |
| High Pressure (1) | 5076 psi |
| Medium Pressure (2) | 13 gal/min |
| High Pressure (2) | 58 gal/min |
| Swing Mechanism (2) | 21 gal/min |
| Swing Mechanism (1) | 5366 psi |
| Medium Pressure (1) | 2683 psi |
Operating Specifications
| Travel Speed | 21.2 mph (34.1 km/h) |
| Maximum Reach - Ground Level | 30.8 ft in (9.4 m) |
| Maximum Bucket Capacity | 1.5 yd3 (1.2 m3) |
| Bucket Digging Force - One Piece Boom | 22705.7 lb (10299.2 kg) |
| Maximum Digging Depth - One Piece Boom | 19.4 ft in (5.9 m) |
| Maximum Reach - Ground Level, One Piece Boom | 30.1 ft in (9.2 m) |
| Stick Digging Force - One Piece Boom | 18209.6 lb (8259.7 kg) |
| Bucket Digging Force - Va Boom | 22705.7 lb (10299.2 kg) |
| Maximum Digging Depth - Va Boom | 20 ft in (6.1 m) |
| Maximum Reach - Ground Level, Va Boom | 30.8 ft in (9.4 m) |
| Stick Digging Force - Va Boom | 18209.6 lb (8259.7 kg) |
Service Refill Capacities
| Fuel Tank | 62 gal (234.7 L) |
| Hydraulic Tank | 36 gal (136.3 L) |
| Hydraulic System - Including Tank | 58 gal (219.6 L) |
| Engine Crankcase | 2.1 gal (8 L) |
| Final Drive | 0.7 gal (2.7 L) |
| Powershift Transmission | 0.7 gal (2.7 L) |
| Front Steering Axle - Differential | 2.8 gal (10.6 L) |
| Rear Axle - Housing (Differential) | 3.7 gal (14.1 L) |
| Cooling | 7.9 gal (30 L) |
Standards
| Brakes | SAE J1026 APR 90 |
| Cab/Fogs | ISO 10262 |
Sound Performance
| Performance | Exterior sound power level according to 2000/14/EC is 103 db (A) Interior sound pressure level LpA is 72 db (A) |
Drive
| Maximum Travel Speed | 21 mph (33.8 km/h) |
Sound Levels
| Exterior Sound | Exterior Sound |
Working Ranges
| Maximum Digging Depth | 20 ft in (6.1 m) |
| Maximum Reach - Ground Level | 30.8 ft in (9.4 m) |
Bucket Specifications
| Bucket Capacities | 0.38 to 1.26 m3 (0.5 to 1.65 yd3) |
Cab/Rops/Fogs
| Standards | Standards |
