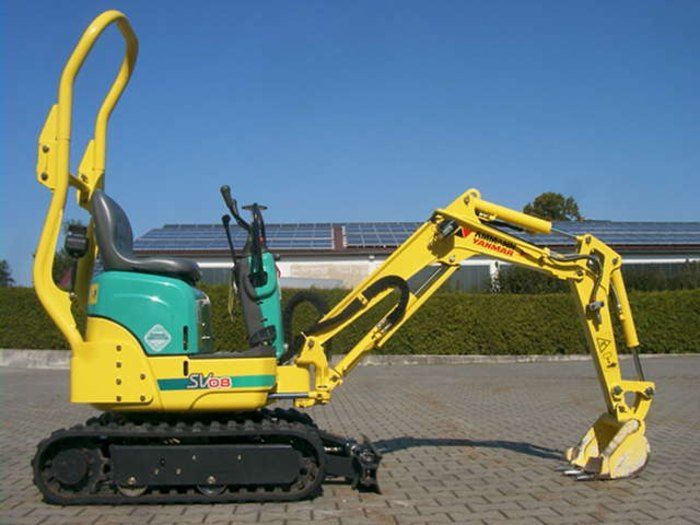

Yanmar SV08-1
Browse All Yanmar or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 8.54 ft in (2600 mm) |
| Shipping Height Of Unit | 7.22 ft in (2200 mm) |
| Max Loading Height | 6.73 ft in (2050 mm) |
| Max Reach Along Ground | 8.96 ft in (2730 mm) |
| Max Vertical Wall Digging Depth | 4.14 ft in (1260 mm) |
| Max Digging Depth | 4.93 ft in (1500 mm) |
Dimensions
| Width To Outside Of Tracks | 2.24 ft in (680 mm) |
| Length Of Track On Ground | 4.01 ft in (1220 mm) |
| Ground Clearance | 0.76 ft in (230 mm) |
| Tail Swing Radius | 2.38 ft in (725 mm) |
Undercarriage
| Shoe Size | 7.09 in (180 mm) |
| Max Travel Speed | 1.12 mph (1.8 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 2TE67LBV |
| Gross Power | 10.4 hp (7.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 31.8 cu in (0.6 L) |
Operational
| Operating Weight | 2348 lb (1065 kg) |
| Hydraulic System Relief Valve Pressure | 2755.8 psi (19000 kPa) |
| Hydraulic Pump Flow Capacity | 2.8 gal/min (10.3 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
