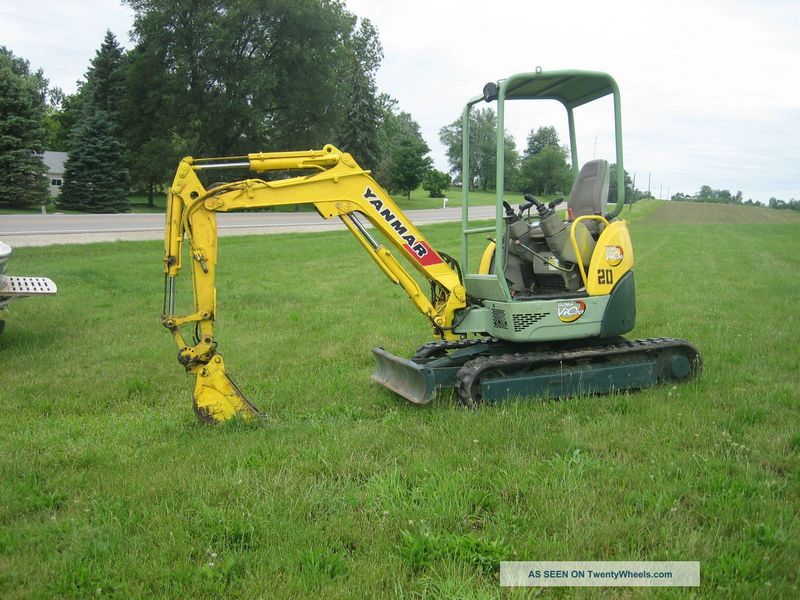

Yanmar Vio20-3
Browse All Yanmar or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12.85 ft in (3915 mm) |
| Shipping Height Of Unit | 7.88 ft in (2400 mm) |
| Max Loading Height | 8.04 ft in (2450 mm) |
| Max Reach Along Ground | 13.65 ft in (4160 mm) |
| Max Vertical Wall Digging Depth | 6.24 ft in (1900 mm) |
| Max Digging Depth | 8.01 ft in (2440 mm) |
Dimensions
| Width To Outside Of Tracks | 4.53 ft in (1380 mm) |
| Length Of Track On Ground | 6.21 ft in (1890 mm) |
| Ground Clearance | 0.92 ft in (280 mm) |
| Tail Swing Radius | 2.27 ft in (690 mm) |
Undercarriage
| Shoe Size | 9.85 in (250 mm) |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV76PBV |
| Gross Power | 19.2 hp (14.3 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 61.1 cu in (1 L) |
Operational
| Operating Weight | 4916.4 lb (2230 kg) |
| Hydraulic System Relief Valve Pressure | 2987.8 psi (20600 kPa) |
| Hydraulic Pump Flow Capacity | 20.1 gal/min (76 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
