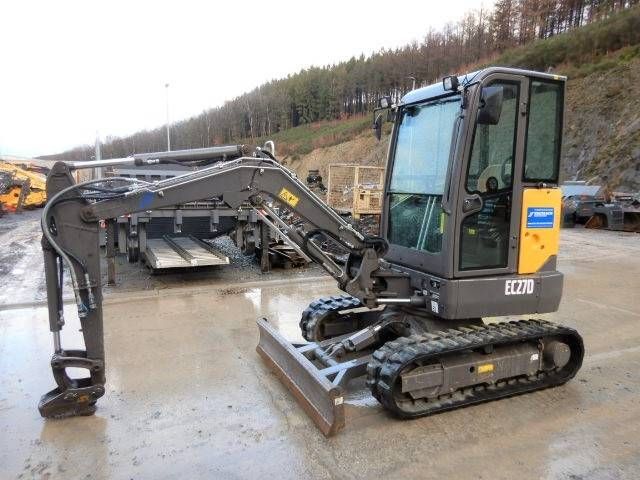

Volvo EC 27 D
Browse All Volvo or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 14.22 ft in (4333 mm) |
| Max Vertical Wall Digging Depth | 6.43 ft in (1959 mm) |
| Max Digging Depth | 8.91 ft in (2715 mm) |
| Max Digging Reach | 14.1 ft in (4295 mm) |
| Max Digging Reach On Ground | 14.1 ft in (4295 mm) |
| Max.Dumping Height | 10.15 ft in (3092 mm) |
| Boom/Stick Option (Hex) 1 | Arm - 1200mm,47 ft in |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 15.09 ft in (4598 mm) |
| Max Vertical Wall Digging Depth | 8.54 ft in (2601 mm) |
| Max Digging Depth | 10.14 ft in (3088 mm) |
| Max.Dumping Height | 10.53 ft in (3209 mm) |
| Boom/Stick Option (Hex) 2 | Arm - 1500 mm, 5.7 ft in |
| Max Digging Reach | 15.31 ft in (4665 mm) |
| Max Digging Reach On Ground | 15.31 ft in (4665 mm) |
Dimensions
| Tail Swing Radius | 3.55 ft in (1080 mm) |
| Dozer Blade Width | 12.29 in (312 mm) |
| Minimum Ground Clearance | 56.7 in (1440 mm) |
| Transport Length | 173.23 in (4400 mm) |
| Overall Height Of Engine Hood | 5.16 ft in (1571 mm) |
| Overall Length | 12.91 ft in (3933 mm) |
| Shoe Width | 1.84 ft in (559 mm) |
| Track Length | 75.04 in (1906 mm) |
Undercarriage
| Shoe Width - Steel | 300 |
| Shoe Width – Rubber | 11.82 in (300 mm) |
| Number Of Top Rollers Per Side | 1 |
| Number Of Bottom Rollers Per Side | 3 |
| Drawbar Pull | 562022.31 lb (2500 kN) |
| Track Tension | by grease piston |
Speeds
| Speed -On Road | 30 mph (48.3 km/h) |
| Speed -Off Road | 20 mph (32.2 km/h) |
| Creep | 10 mph (16.1 km/h) |
| Min Turning Radius | 5.1 ft in (1.6 m) |
Electrical System
| Battery Capacity | 70 Ah |
| Voltage | 12 V V (deletedelete) |
| Battery | 12 V |
Swing System
| Max - Slew Speed | 9.4 rpm |
| Max - Slew Torque | 357.8 lb ft (485 Nm) |
Engine
| Max Power | 2400 rpm |
| Fuel Tank | 7.4 gal (28 L) |
| Number Of Cylinders | 3 |
| Engine Model | D1.1A |
| Rated Engine Speed | 1600 rpm |
| Gross Power | 15.6 hp (11.7 kw) |
| Displacement | 1123 cu in (18.5 L) |
| Max Torque | 52.7 lb ft (71.4 Nm) |
| Bore | 3.1 in (78 mm) |
| Stroke | 3.1 in (78.4 mm) |
Capacities
| Travel Reduction | 0.4 gal (1.4 L) |
| Hydraulic Tank - Total System | 16.4 gal (62 L) |
| Hydraulic Tank | 8.5 gal (32 L) |
| Engine Oil | 1.9 gal (7 L) |
| Engine Coolant | 1.9 gal (7 L) |
Operational
| Operating Weight | 6019 lb (2730.2 kg) |
Performance
| Travel Speed Low | 2.6 mph (4.2 km/h) |
| Travel Speed - High | 4.8 mph (7.8 km/h) |
| Gradeability | 30 % |
Loader
| Breakout Force | 5528 (IBF) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
Hydraulic System
| Main Pump - Maximum Flow | 15.4 gal/min (58 L/min) |
