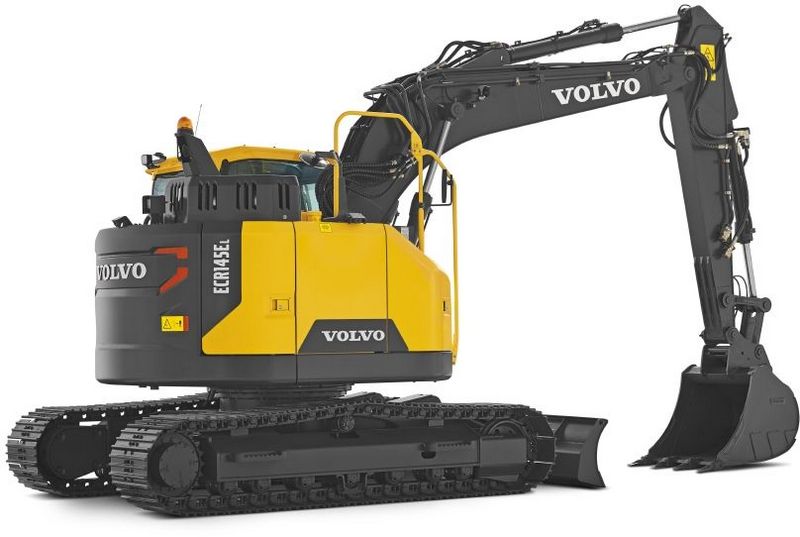

Volvo ECR145E
Browse All Volvo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 29.83 ft in (9090 mm) |
| Max Vertical Wall Digging Depth | 12.98 ft in (3954 mm) |
| Max Digging Depth | 16.84 ft in (5130 mm) |
| Max.Dumping Height | 21.49 ft in (6550 mm) |
| Boom/Stick Option (Hex) 1 | Mono Boom - 4.6 m, 15.1 ft in / Arm - 2.1 m, 6.11 ft in |
| Max Digging Reach | 26.22 ft in (7990 mm) |
| Min.Front Swing Radius | 6.33 ft in (1929 mm) |
| Max Digging Reach On Ground | 25.73 ft in (7840 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 30.89 ft in (9415 mm) |
| Max Vertical Wall Digging Depth | 14.19 ft in (4325 mm) |
| Max Digging Depth | 18.15 ft in (5530 mm) |
| Max Digging Reach On Ground | 26.96 ft in (8215 mm) |
| Boom/Stick Option (Hex) 2 | Mono Boom - 4.6 m, 15.1 ft in / Arm - 2.5 m, 8.2 ft in |
| Min.Front Swing Radius | 6.99 ft in (2130 mm) |
| Max.Dumping Height | 22.56 ft in (6875 mm) |
| Max Digging Reach | 27.43 ft in (8360 mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 32.35 ft in (9860 mm) |
| Max Vertical Wall Digging Depth | 15.93 ft in (4855 mm) |
| Max Digging Depth | 19.79 ft in (6030 mm) |
| Min.Front Swing Radius | 8.22 ft in (2505 mm) |
| Max Digging Reach On Ground | 28.61 ft in (8720 mm) |
| Boom/Stick Option (Hex) 3 | Mono Boom - 4.6 m, 15.1 ft in / Arm - 3.0 m, 9.10 ft in |
| Max.Dumping Height | 23.99 ft in (7310 mm) |
| Max Digging Reach | 29.04 ft in (8850 mm) |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 30.78 ft in (9380 mm) |
| Max Digging Depth | 17.18 ft in (5235 mm) |
| Max.Dumping Height | 22.41 ft in (6830 mm) |
| Boom/Stick Option (Hex) 4 | 2-piece Boom - 4.72 m, 15.6 ft in / Arm - 2.1 m, 6.11 ft in |
| Min.Front Swing Radius | 7.65 ft in (2330 mm) |
| Max Digging Reach | 26.97 ft in (8220 mm) |
| Max Vertical Wall Dig Depth | 13.64 ft in (4155 mm) |
| Max Digging Reach On Ground | 26.48 ft in (8070 mm) |
Boom/Stick Option (Hex) 5
| Max Cutting Height | 31.96 ft in (9740 mm) |
| Max Digging Depth | 18.51 ft in (5640 mm) |
| Max - Dumping Height | 23.59 ft in (7190 mm) |
| Boom/Stick Option (Hex) 5 | 2-piece Boom - 4.72 m, 15.6 ft in / Arm - 2.5 m, 8.2 ft in |
| Max - Digging Reach | 28.25 ft in (8610 mm) |
| Max - Digging Reach On Ground | 27.78 ft in (8465 mm) |
| Max Vertical Wall Dig Depth | 14.84 ft in (4523 mm) |
| Min - Front Swing Radius | 8.5 ft in (2590 mm) |
Boom/Stick Option (Hex) 6
| Max Cutting Height | 33.49 ft in (10205 mm) |
| Max Digging Depth | 20.17 ft in (6145 mm) |
| Max - Digging Reach On Ground | 29.43 ft in (8970 mm) |
| Max - Digging Reach | 29.86 ft in (9100 mm) |
| Min - Front Swing Radius | 9.88 ft in (3010 mm) |
| Max Vertical Wall Dig Depth | 16.46 ft in (5015 mm) |
| Max - Dumping Height | 25.14 ft in (7660 mm) |
| Boom/Stick Option (Hex) 6 | 2-piece Boom - 4.72 m, 15.6 ft in / Arm - 3.0 m, 9.10 ft in |
Dimensions
| Tail Swing Radius | 4.91 ft in (1494 mm) |
| Counterweight Clearance | 2.96 ft in (900 mm) |
| Ground Clearance (Minimum) | 1.42 ft in (430 mm) |
| Track Length | 147.64 in (3750 mm) |
| Overall Height (To Top Of Cab) | 9.5 ft in (2895 mm) |
| Overall Length | 24.28 ft in (7400 mm) |
| Overall Width | 105.91 in (2690 mm) |
| Overall Width -Upper Structure | 8.17 ft in (2490 mm) |
| Shoe Width | 2.3 ft in (700 mm) |
| Overall Height (To Top Of Boom) | 9.06 ft in (2760 mm) |
Undercarriage
| Number Of Top Rollers Per Side | 2 x 1 |
| Number Of Bottom Rollers Per Side | 2 x 7 |
| Link Pitch | 6.74 in (171 mm) |
| Shoe Width – Rubber | 19.69 in (500 mm) |
| Shoe Width (Standard) | 27.56 in (700 mm) |
Electrical System
| Alternator | 28/110 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 12 / 100 V/Ah |
| Starter Motor | 132 V/KW |
Swing System
| Max - Slew Speed | 12.7 rpm |
| Max - Slew Torque | 30910 lb ft (41908.4 Nm) |
| Swing Reduction | 3.9 L, 1 gal |
Engine
| Max Power | 2000 rpm |
| Number Of Cylinders | 4 |
| Rated Engine Speed | 1500 rpm |
| Engine Model | Volvo D4J |
| Gross Power | 120.7 hp (90 kw) |
| Net Power | 119.4 hp (89 kw) |
| Max Torque | 417.5 lb ft (566 Nm) |
| Displacement | 244.1 cu in (4 L) |
| Bore | 4 in (101 mm) |
| Stroke | 5 in (126 mm) |
Capacities
| Travel Reduction | 2 gal (7.6 L) |
| Fuel Tank | 52.9 gal (200 L) |
| Hydraulic Tank | 15.6 gal (59 L) |
| Diesel Exhaust Fluid (Def) Tank | 4.1 gal (15.5 L) |
| Hydraulic System | 52.9 gal (200 L) |
| Engine Oil | 4.1 gal (15.5 L) |
| Engine Coolant | 6.9 gal (26 L) |
Performance
| Gradeability | 35 % |
| Drawbar Pull Force | 26752.3 lb (119 kN) |
Hydraulic System
| Power Boost | 4980 psi (34335.9 kPa) |
| Standard Pressure | 4690 psi (32336.4 kPa) |
| Slew Circuit | 3840 psi (26475.9 kPa) |
| Main Pump - Maximum Flow | 65.6 gal/min (248 L/min) |
| Pilot Pump - Maximum Flow | 5.3 gal/min (20 L/min) |
| Travel Circuit | 4980 psi (34335.9 kPa) |
| Pilot Circuit | 570 psi (3930.1 kPa) |
