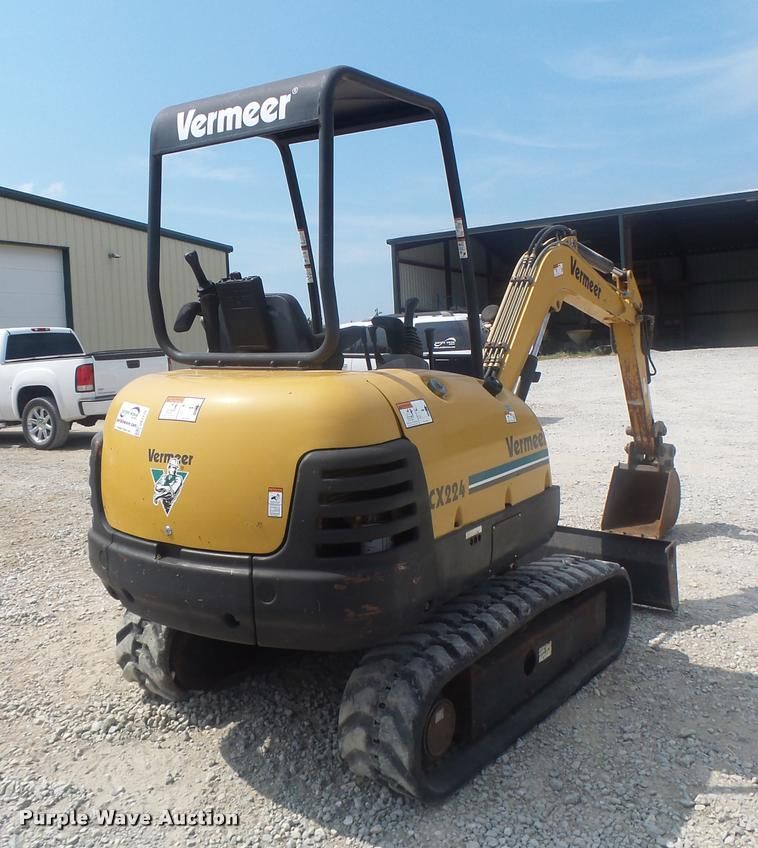

Vermeer CX224
Browse All Vermeer or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 14.34 ft in (4370 mm) |
| Shipping Height Of Unit | 7.75 ft in (2360 mm) |
| Max Loading Height | 9.85 ft in (3000 mm) |
| Max Reach Along Ground | 14.44 ft in (4400 mm) |
| Max Vertical Wall Digging Depth | 6.44 ft in (1960 mm) |
| Max Digging Depth | 8.44 ft in (2570 mm) |
| Boom/Stick Option (Hex) 1 | Boom / Stick |
Dimensions
| Width To Outside Of Tracks | 4.83 ft in (1470 mm) |
| Length Of Track On Ground | 6.01 ft in (1830 mm) |
| Ground Clearance | 1.84 ft in (560 mm) |
| Height To Top Of Cab | 7.75 ft in (2360 mm) |
| Tail Swing Radius | 4.07 ft in (1240 mm) |
Undercarriage
| Shoe Size | 11.82 in (300 mm) |
| Track Gauge | 3.84 ft in (1170 mm) |
| Max Travel Speed | 2.8 mph (4.5 km/h) |
| Ground Pressure | 4.1 psi (28.27 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V1305-E Diesel |
| Gross Power | 25 hp (18.7 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 81.5 cu in (1.4 L) |
Operational
| Operating Weight | 5621.8 lb (2550 kg) |
| Fuel Capacity | 9.6 gal (36.3 L) |
| Hydraulic System Fluid Capacity | 11.4 gal (43.2 L) |
| Hydraulic Pump Flow Capacity | 14.8 gal/min (56 L/min) |
