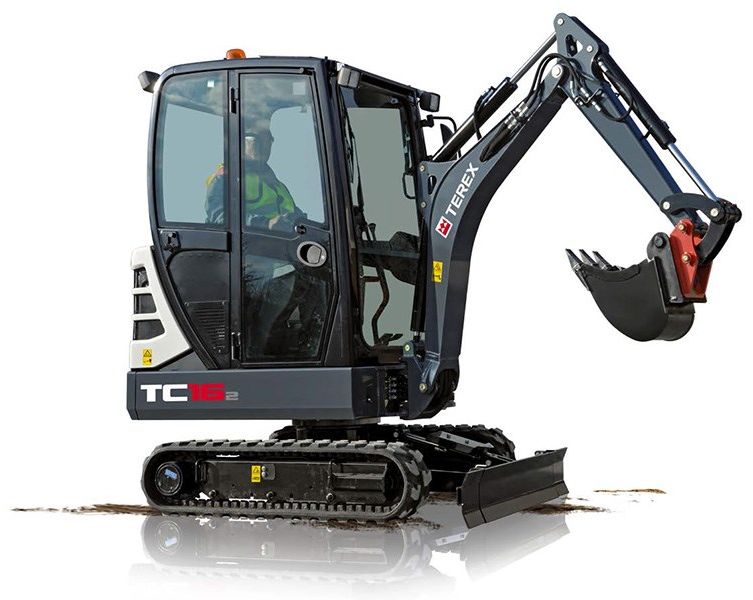

Terex TC16
Browse All Terex or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 11.49 ft in (3500 mm) |
| Max Loading Height | 7.88 ft in (2400 mm) |
| Max Vertical Wall Digging Depth | 3.94 ft in (1200 mm) |
| Max Digging Depth | 7.88 ft in (2400 mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 11.16 ft in (3400 mm) |
| Max Loading Height | 7.55 ft in (2300 mm) |
| Max Vertical Wall Digging Depth | 3.61 ft in (1100 mm) |
| Max Digging Depth | 7.22 ft in (2200 mm) |
| Boom/Stick Option (Hex) 2 | boom w/ dipperstick 43'' (1100mm) |
Dimensions
| Width To Outside Of Tracks | 3.29 ft in (1000 mm) |
| Length Of Track On Ground | 3.61 ft in (1100 mm) |
| Ground Clearance | 0.56 ft in (170 mm) |
| Height To Top Of Cab | 7.88 ft in (2400 mm) |
| Tail Swing Radius | 3.61 ft in (1100 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.53 ft in (770 mm) |
| Ground Pressure | 3.4 psi (23.45 kPa) |
| Drawbar Pull | 2610 lb (11.61 kN) |
| Max Travel Speed | 1.68 mph (2.7 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3E-W 262 KL |
| Net Power | 18 hp (13.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 58 cu in (1 L) |
| Max Torque | 439.6 lb ft (596.1 Nm) |
| Torque Measured @ | 2000 rpm |
Operational
| Operating Weight | 3792 lb (1720.1 kg) |
| Fuel Capacity | 8 gal (30 L) |
| Hydraulic System Fluid Capacity | 9.3 gal (35 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 2390 psi (16478.5 kPa) |
| Hydraulic Pump Flow Capacity | 14 gal/min (52.7 L/min) |
Swing Mechanism
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.2 yd3 (0.2 m3) |
