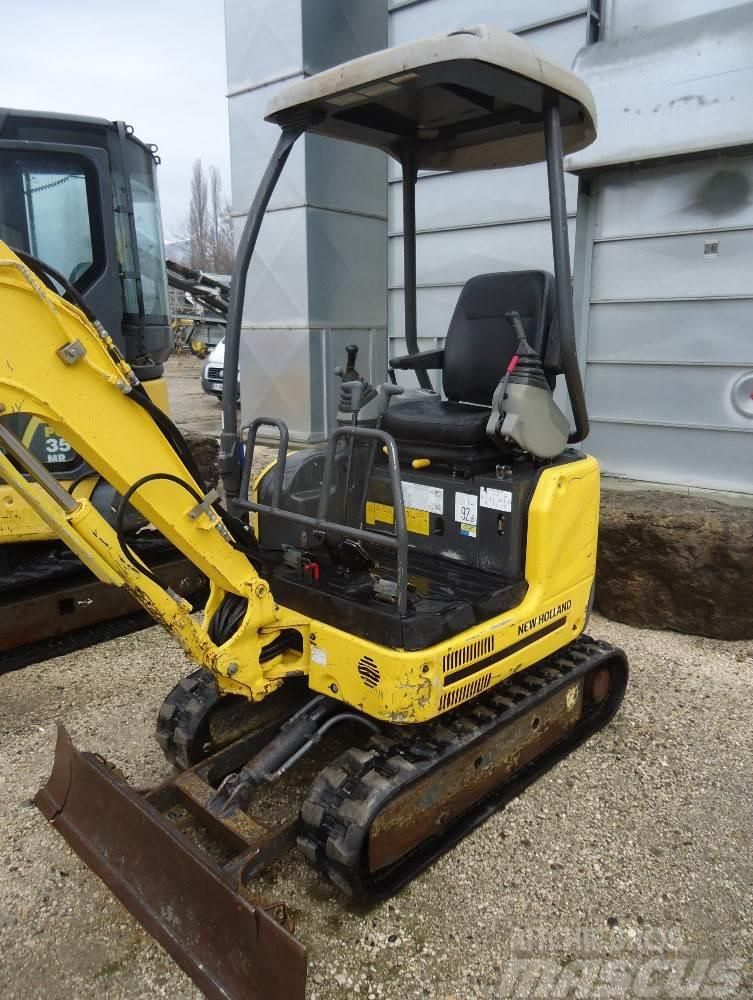

New Holland E18SR
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.23 ft in (3420 mm) |
| Shipping Height Of Unit | 7.71 ft in (2350 mm) |
| Max Loading Height | 8.7 ft in (2650 mm) |
| Max Reach Along Ground | 12.77 ft in (3890 mm) |
| Max Vertical Wall Digging Depth | 5.45 ft in (1660 mm) |
| Max Digging Depth | 7.06 ft in (2150 mm) |
Dimensions
| Width To Outside Of Tracks | 4.34 ft in (1320 mm) |
| Length Of Track On Ground | 3.97 ft in (1210 mm) |
| Ground Clearance | 0.56 ft in (170 mm) |
| Tail Swing Radius | 2.17 ft in (660 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Max Travel Speed | 2.49 mph (4 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2251 |
| Engine Model | L3EW 23LKBS |
| Gross Power | 15.2 hp (11.3 kw) |
| Displacement | 58.1 cu in (1 L) |
Operational
| Operating Weight | 3747.9 lb (1700 kg) |
| Hydraulic System Relief Valve Pressure | 3132.9 psi (21600 kPa) |
| Hydraulic Pump Flow Capacity | 8.3 gal/min (31.3 L/min) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
