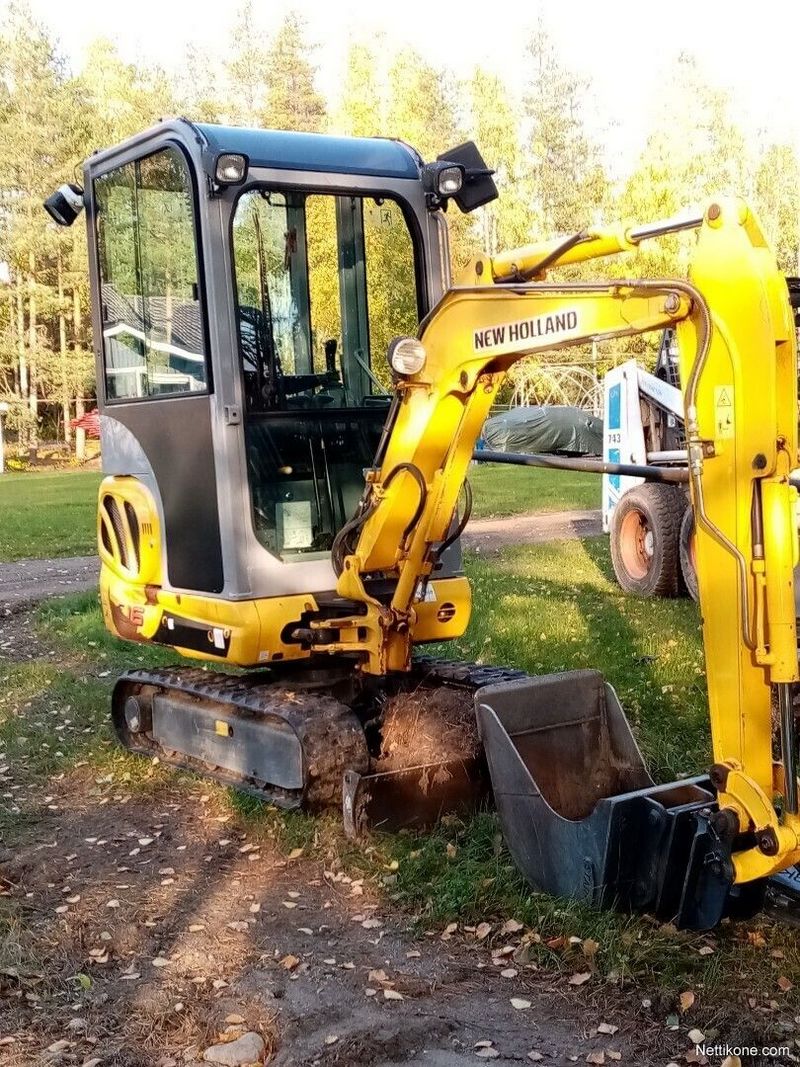

New Holland E16
Browse All New Holland or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.65 ft in (3550 mm) |
| Max Cutting Height | 11.59 ft in (3530 mm) |
| Shipping Height Of Unit | 7.71 ft in (2350 mm) |
| Max Loading Height | 8.17 ft in (2490 mm) |
| Max Reach Along Ground | 12.08 ft in (3680 mm) |
| Max Vertical Wall Digging Depth | 5.09 ft in (1550 mm) |
| Max Digging Depth | 7.16 ft in (2180 mm) |
| Boom/Stick Option (Hex) 1 | stick 1020mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 11.98 ft in (3650 mm) |
| Shipping Length Of Unit | 11.65 ft in (3550 mm) |
| Max Loading Height | 8.57 ft in (2610 mm) |
| Shipping Height Of Unit | 7.71 ft in (2350 mm) |
| Max Reach Along Ground | 12.73 ft in (3880 mm) |
| Max Vertical Wall Digging Depth | 6.01 ft in (1830 mm) |
| Max Digging Depth | 7.81 ft in (2380 mm) |
| Boom/Stick Option (Hex) 2 | stick 1220mm |
Dimensions
| Width To Outside Of Tracks | 3.25 ft in (990 mm) |
| Length Of Track On Ground | 3.97 ft in (1210 mm) |
| Ground Clearance | 0.76 ft in (230 mm) |
| Height To Top Of Cab | 7.68 ft in (2340 mm) |
| Tail Swing Radius | 3.45 ft in (1050 mm) |
| Removal Counterweight Clearance | 1.42 ft in (430 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Track Gauge | 2.5 ft in (760 mm) |
| Max Travel Speed | 2.18 mph (3.5 km/h) |
| Ground Pressure | 3.92 psi (27 kPa) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNE74-N |
| Net Power | 15 hp (11.2 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 61.7 cu in (1.1 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 3626.7 lb (1645 kg) |
| Fuel Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 0.7 gal (2.5 L) |
| Hydraulic System Fluid Capacity | 4.5 gal (17 L) |
| Engine Oil Capacity | 1 gal (3.5 L) |
| Operating Voltage | 12 V |
| Hydraulic System Relief Valve Pressure | 2987.8 psi (20600 kPa) |
| Hydraulic Pump Flow Capacity | 8 gal/min (30 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
