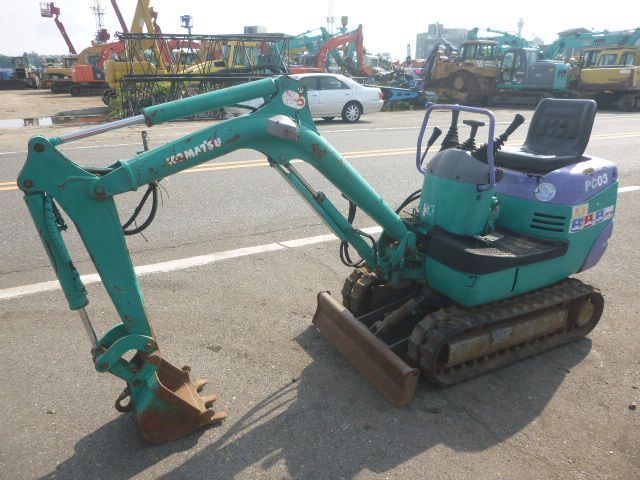

Komatsu PC03-2F
Browse All Komatsu or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 8.97 ft in (2730 mm) |
| Max Cutting Height | 9.48 ft in (2890 mm) |
| Shipping Height Of Unit | 4.13 ft in (1260 mm) |
| Max Loading Height | 6.56 ft in (2000 mm) |
| Max Reach Along Ground | 9.31 ft in (2840 mm) |
| Max Vertical Wall Digging Depth | 2.89 ft in (880 mm) |
| Max Digging Depth | 5.08 ft in (1550 mm) |
| Boom/Stick Option (Hex) 1 | Standard |
Dimensions
| Width To Outside Of Tracks | 2.63 ft in (800 mm) |
| Length Of Track On Ground | 2.96 ft in (900 mm) |
| Ground Clearance | 0.56 ft in (170 mm) |
| Height To Top Of Cab | 4.14 ft in (1260 mm) |
| Tail Swing Radius | 2.53 ft in (770 mm) |
| Removal Counterweight Clearance | 1.15 ft in (350 mm) |
Undercarriage
| Track Gauge | 2.03 ft in (620 mm) |
| Ground Pressure | _ - (19.7 kPa) |
| Max Travel Speed | 1.31 mph (2.1 km/h) |
Engine
| Number Of Cylinders | 2 |
| Engine Make | 2238 |
| Engine Model | 2D68E-3A |
| Net Power | 8.5 hp (6.4 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 31.9 cu in (0.6 L) |
| Aspiration | Natural |
Operational
| Operating Weight | 1958 lb (890 kg) |
| Fuel Capacity | 3.5 gal (13 L) |
| Hydraulic System Fluid Capacity | 4.4 gal (16.4 L) |
| Hydraulic System Relief Valve Pressure | 2275.8 psi (15690.7 kPa) |
| Hydraulic Pump Flow Capacity | 5.9 gal/min (22 L/min) |
Swing Mechanism
| Swing Speed | 8.5 rpm |
