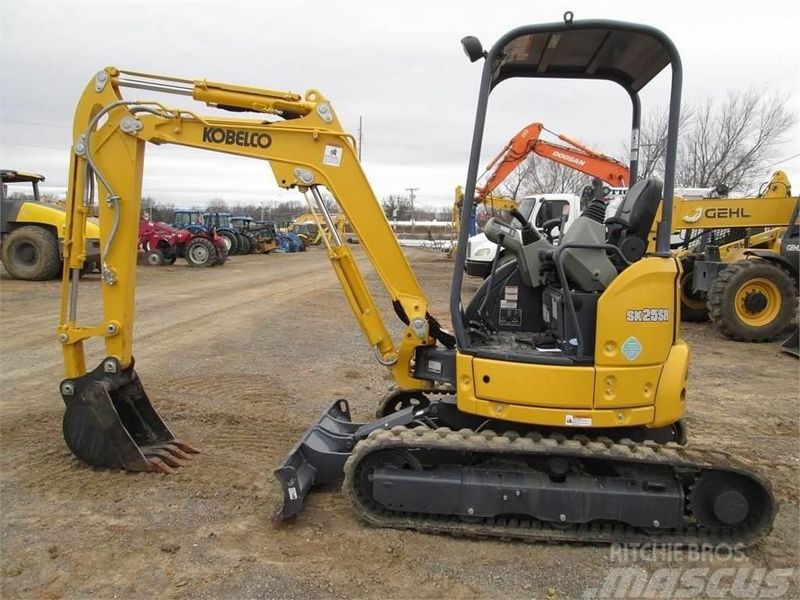

Kobelco SK25SR-6E
Browse All Kobelco or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 13.6 ft in (4145.28 mm) |
| Max Cutting Height | 14.2 ft in (4328.16 mm) |
| Shipping Height Of Unit | 8.4 ft in (2560.33 mm) |
| Max Loading Height | 9.7 ft in (2956.56 mm) |
| Max Reach Along Ground | 15.3 ft in (4663.44 mm) |
| Max Vertical Wall Digging Depth | 8.2 ft in (2499.36 mm) |
| Max Digging Depth | 9.2 ft in (2804.16 mm) |
| Arm Crowding Force - Iso | 2832.6 lb (12.6 kN) |
| Arm Crowding Force - Sae | 2720.19 lb (12.1 kN) |
| Boom/Stick Option (Hex) 1 | Mono Boom |
| Bucket Digging Force - Iso | 5193.09 lb (23.1 kN) |
| Bucket Digging Force - Sae | 4541.15 lb (20.2 kN) |
Dimensions
| Width To Outside Of Tracks | 4.12 ft in (1252.73 mm) |
| Length Of Track On Ground | 13.6 ft in (4145.28 mm) |
| Ground Clearance | 1.11 ft in (335.28 mm) |
| Height To Top Of Cab | 8.4 ft in (2560.33 mm) |
| Tail Swing Radius | 2.6 ft in (792.48 mm) |
Undercarriage
| Shoe Size | 10 in (254 mm) |
| Number Of Track Rollers Per Side | 3 |
| Ground Pressure | 4.3 psi (29.65 kPa) |
| Max Travel Speed | 2.8 mph (4.51 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Model | YANMAR 3TNV80F-SXNBV |
| Engine Type | Tier4 water-cooled 4-cycle 3-cylinder |
| Net Power | 19.7 hp (14.7 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 77.3 cu in (1.3 L) |
| Max Torque | 47.2 lb ft (63.9 Nm) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 5644 lb (2560.1 kg) |
| Fuel Capacity | 8.1 gal (30.5 L) |
| Traction Force | 5485.4 lb (24.4 kN) |
Swing Mechanism
| Swing Motor | Fixed displacement pump |
| Swing Speed | 10 rpm |
Buckets
| Reference Bucket Capacity | 0.2 yd3 (0.1 m3) |
Hydraulic System
| Relief Valve Setting | 2×2,987(20.6), 1×2,631(18.1), 1×427(2.9) (psi (MPa)) |
| Max. Oil Flow | 2×7.9(30.0), 1×5.6(21.3), 1×3.0(11.3) (gal/min (L/min)) |
| Pump Type | Two variable displacement pumps + two gear pump |
