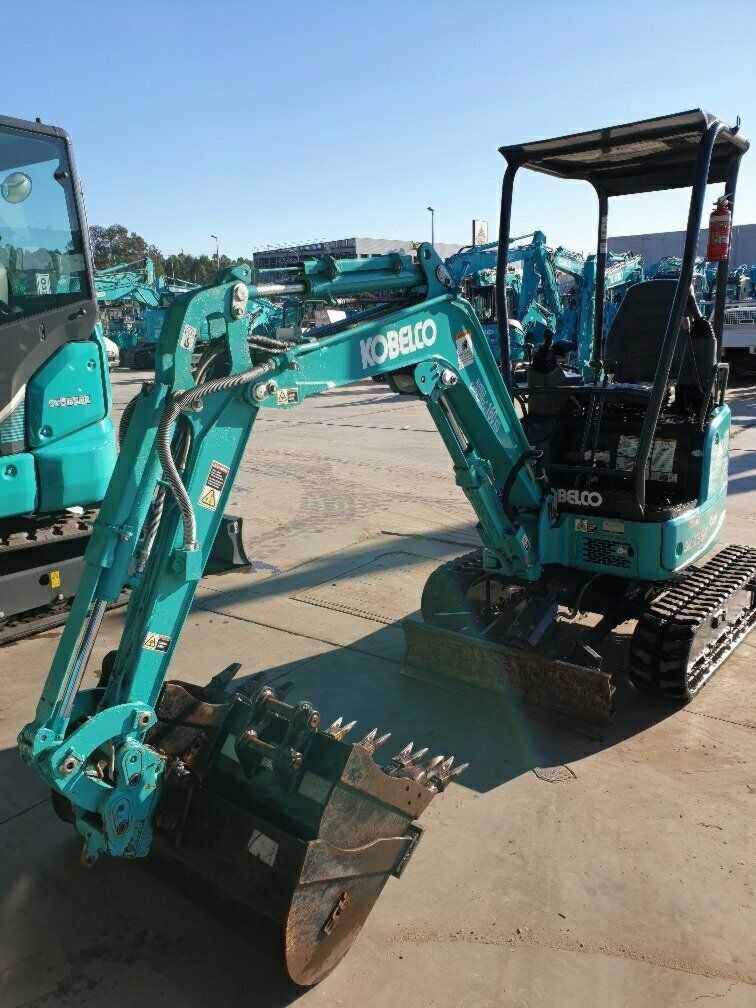

Kobelco SK17SR-5E
Browse All Kobelco or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 11.4 ft in (3474.72 mm) |
| Max Cutting Height | 12.1 ft in (3688.08 mm) |
| Shipping Height Of Unit | 7.7 ft in (2346.96 mm) |
| Max Loading Height | 8.81 ft in (2682.24 mm) |
| Max Reach Along Ground | 12.2 ft in (3718.56 mm) |
| Max Vertical Wall Digging Depth | 6.1 ft in (1859.28 mm) |
| Max Digging Depth | 7.3 ft in (2225.04 mm) |
| Arm Crowding Force - Iso | 1910.88 lb (8.5 kN) |
| Arm Crowding Force - Sae | 1820.96 lb (8.1 kN) |
| Boom/Stick Option (Hex) 1 | Mono Boom |
| Bucket Digging Force - Iso | 3394.62 lb (15.1 kN) |
| Bucket Digging Force - Sae | 2832.6 lb (12.6 kN) |
Dimensions
| Width To Outside Of Tracks | 3.1 ft in (944.88 mm) |
| Length Of Track On Ground | 11.4 ft in (3474.72 mm) |
| Ground Clearance | 0.7 ft in (213.36 mm) |
| Height To Top Of Cab | 7.7 ft in (2346.96 mm) |
| Tail Swing Radius | 2.1 ft in (640.09 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Number Of Track Rollers Per Side | 3 |
| Ground Pressure | 4.2 psi (28.96 kPa) |
| Max Travel Speed | 2.68 mph (4.3 km/h) |
Engine
| Number Of Cylinders | 3 |
| Engine Model | YANMAR 3TNV74F-SPBV |
| Engine Type | Tier4 water-cooled 4-cycle 3-cylinder |
| Net Power | 14.5 hp (10.9 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 61.1 cu in (1 L) |
| Max Torque | 36.3 lb ft (49.2 Nm) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 3671 lb (1665.2 kg) |
| Fuel Capacity | 5.3 gal (20 L) |
| Traction Force | 4114.1 lb (18.3 kN) |
Swing Mechanism
| Swing Motor | Orbit motor |
| Swing Speed | 9.5 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
Hydraulic System
| Relief Valve Setting | 2×20.6, 16.7×1, 2.9×1 (psi) |
| Max. Oil Flow | 2×4.6(17.6), 1×3.5(13.2), 1×2.6(11.2) (gal/min (L/min)) |
| Pump Type | Two variable displacement pumps + two gear pump |
