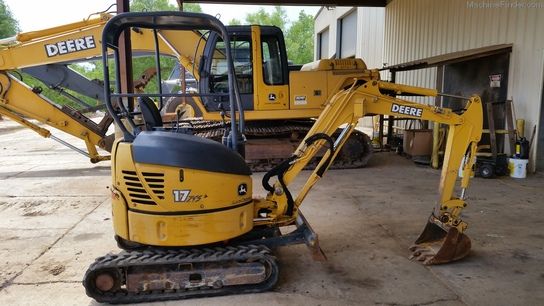

John Deere 17ZTS
Browse All John Deere or Mini Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 12 ft in (3657.6 mm) |
| Max Cutting Height | 11.58 ft in (3529.59 mm) |
| Shipping Height Of Unit | 7.62 ft in (2320 mm) |
| Max Loading Height | 8.33 ft in (2538.99 mm) |
| Max Reach Along Ground | 12.92 ft in (3938.02 mm) |
| Max Digging Depth | 7.25 ft in (2209.81 mm) |
| Boom/Stick Option (Hex) 1 | Arm length 3ft.1in. (930mm) |
Dimensions
| Width To Outside Of Tracks | 4.42 ft in (1347.22 mm) |
| Length Of Track On Ground | 3.97 ft in (1210 mm) |
| Ground Clearance | 0.79 ft in (240 mm) |
| Height To Top Of Cab | 7.58 ft in (2310.39 mm) |
| Tail Swing Radius | 2.25 ft in (685.8 mm) |
| Removal Counterweight Clearance | 1.5 ft in (457.2 mm) |
Undercarriage
| Shoe Size | 9.06 in (230 mm) |
| Ground Pressure | 4.34 psi (29.93 kPa) |
| Max Travel Speed | 2.5 mph (4.03 km/h) |
Engine
| Engine Make | 2353 |
| Engine Model | 3YB1 |
| Net Power | 12.3 hp (9.2 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 46.4 cu in (0.8 L) |
Operational
| Operating Weight | 3814 lb (1730.1 kg) |
| Fuel Capacity | 6.6 gal (25 L) |
| Hydraulic System Fluid Capacity | 7.4 gal (28.1 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 amps |
| Hydraulic Pump Flow Capacity | 7.7 gal/min (29.2 L/min) |
Swing Mechanism
| Swing Speed | 8.6 rpm |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.1 yd3 (0.1 m3) |
